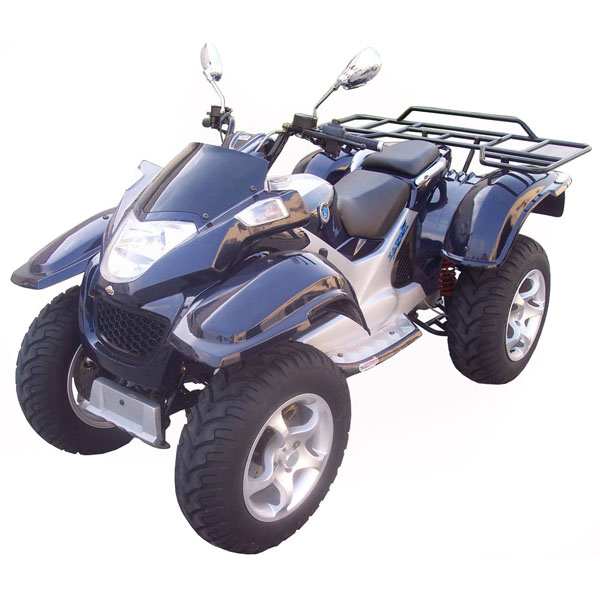

260cc Water-Cooled CVT Shaft Drive ATV/Quad with EEC Homologation for 2 Riders (FPA260E-X)

Specifications

Prod Model:	FPA260E-X
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fuel:	Gas / Diesel
Certification:	EEC
Transmission System:	Shaft Drive
Engine Type:	4 Stroke
Transmission Type:	Automatic

Product Description

Engine Type: 260CC, single cylinder, 4-stroke, water-cooled
Transmisson System: Shaft drive
Engine Disposal Model: Rear
Bore*Stroke(mm*mm): 70 x 66.8mm
Piston Displacement(ml): 257ml
Max. Power(Kw/r/min): 12kw/7500rpm
Max. Torque(N. M/r/min): 20.0N. M/5, 500rpm
Ignition System: DC- C. D. I.
Staring System: Electric
Clutch Type: Automatic
Transmission Type: Automatic CVT with reverse
Compression Ratio: 9: 01
Min. Fuel Consume Rate(g/Kw. H): 3.5L/100km
Whole Dimension (mm): 2135 x 1210 x 1130mm
Axle Base(mm): 1400mm
Fr Wheel Base(mm): 920mm
R. Wheel Base(mm): 900mm
Seat Height(mm): 815mm
Ground Clearance(mm): 200mm
N. W(kg): 260
G. W(kg): 280
Max. Speed(Km/h): 70
Max. Load Capacity(kg): 200
Max climb abiilty: 30
Min Turning Radius(mm): 4600mm
Package Dimension(mm): 2280 x 1290 x 870mm
Main Brake Model(Fr/R): Hydraulic disc,
Main Brake Handle Mode: Right foot control
Stopper Brake Model: Rear wheel
Stopper Brake Handle Mode: left hand control
Tyre Type: Rubber
Wheel Type: Aluminium
Fr. Size Tyre: AT 24 x 8.0-14
R. Size Tyre: AT 24 x 10 - 14
Fuel Tank Capacity(L): 7
Fr. Absorber Type: Hydraulic
Fr. Suspension: Independent dual A-arm
Battery: 12V, 14AH
Package type: Standard export carton, with metal frames support
Loading: 20FT/40HQ: 8 PCS, 27 PCS
