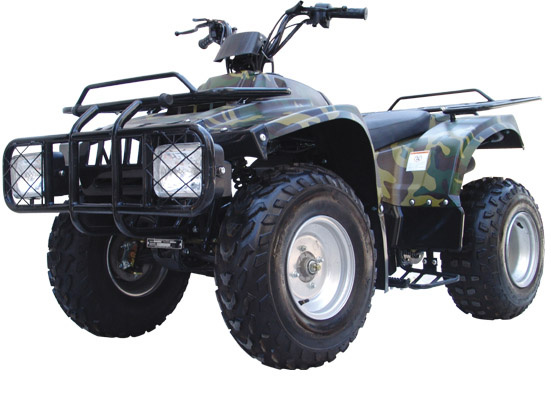

250cc QUAD/ATV with CE (FST-250)

Specifications

Prod Model:	FST-250

Product Description

We are professional manufacture of various of scooter, like atv, dirt bike, pocket bike. This year, fitness have been put into production, you are welcome to enquiry!

Engine: Air-cooled, 4-stroke, double cylinder, fully-automatic
Displacement: 233. 7cc
Compression ratio: 9. 1: 1
Starting mode: Electric
Tank capacity: 11L
Front tire: AT23X7-10
Rear tire: AT22X10-10
Power(kw/r/min): 12kw/9000r/min
Start system: Electric/recoil backup
Brake system: Front mechanical drum brake, rear hydraulic
Packing brake: Mechanical lock
Transmission: Shaft drive
Maximum torque(n. M. /r/min): 13n. M/7000r/min
Idle speed: (1500+-150)r/min
Maximum speed: 65km/h
Maximum gradient: >=25
Compression ratio: 9. 1: 1
Clutch: Hand operation
Spark plug type: A7TC
Ignition type: CDI
Weight: 210kgs
Engine oil cap: 1. 2L
Engine oil: 15W-40
Oil pump: Inner-outer rotor type
Magneto: Permanent magnetic
Lubrication: Press/splash
Color available: Red, green, black, c. Camouflage
Overall dimensions: 1900*1060*1060mm
Carton meas: 1940*1005*1118mm
Container: 12pcs/20' GP, 24pcs/40' GP
