Specifications
Prod Model: |
KG250-X |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe |
Normal Color: |
Blue/Black/Red |
Brand: |
OEM or ODM |
Type: |
Racing Motorcycle |
Displacement: |
126-250CC |
Engine Type: |
4-Stroke |
Fuel: |
Gas / Diesel |
Certification: |
CE |
Condition: |
New |
Product Description

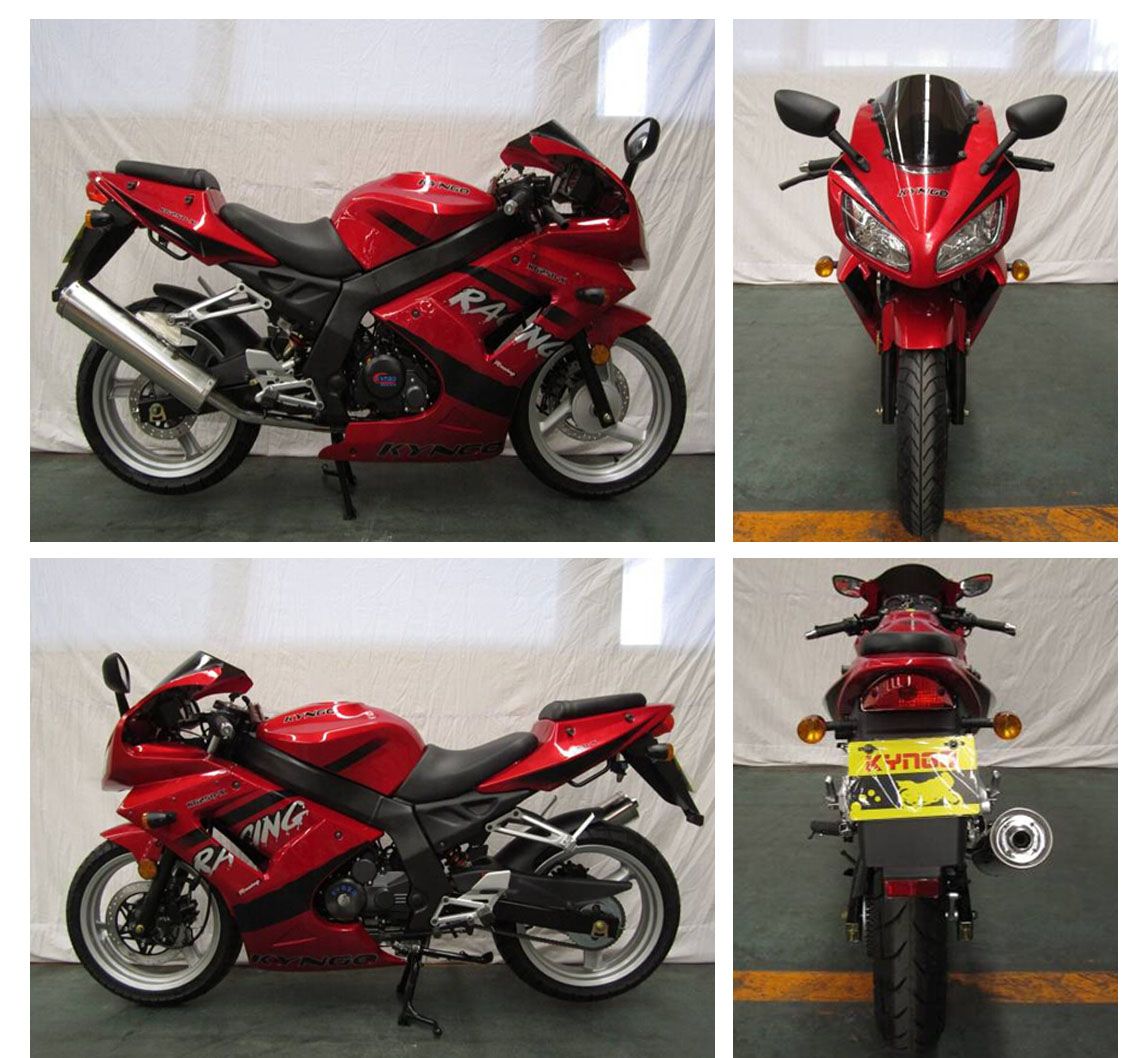

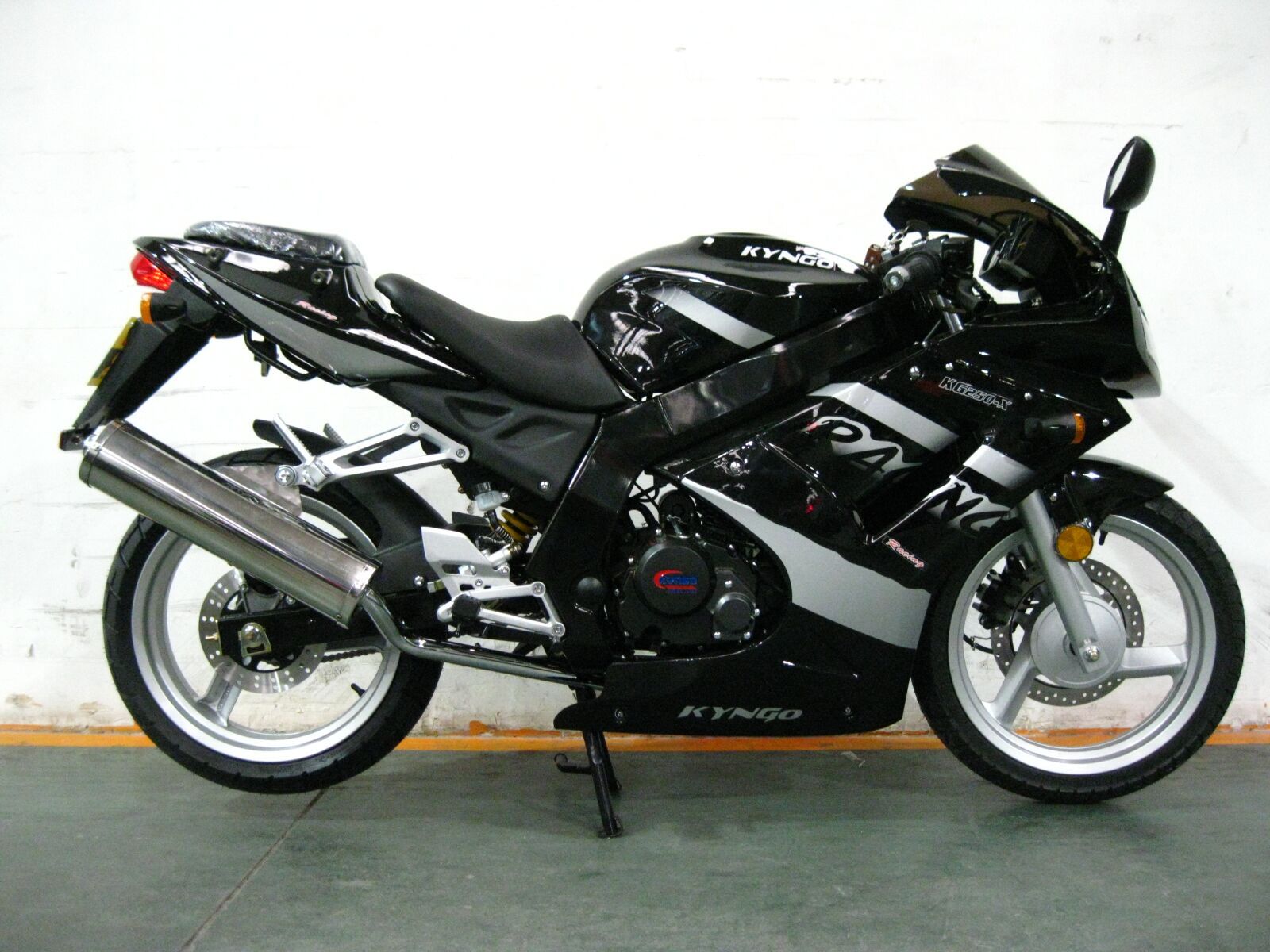

200CC/250CC street sports motorcycleTechnical Data: |
|
Engine |
|
Engine Type: | Single cylinder,oil-cooled, Four-stroke ,ignition |
Displacement (ml): | 250 |
Bore X Stroke (mm): | 69.0x62.2 |
Compression Ratio: | 9:01 |
Max. Power (kw/r/min) | 12/7500 |
Max. Torque (N.m/r/min): | 18/6000 |
Max. Speed (Km/h): | ≥110 |
Lubrication: | Pressure splash |
Clutch Type: | Manual multiplate wet clutch |
Ignition: | C.D.I |
Starting System: | Electric start |
Transmission System: | Chain drive |
CHASSIS |
|
Front Suspension: | Hydraulic pressure and spring complex |
Rear Suspension: | Hydraulic pressure and spring complex,one shock absorber |
Chassis structure: | Steel tube and armor plate complex,double lower tube cradel type |
Handlebar: | chromeplated handlebar |
Front Brake: | Disc Brake |
Rear Brake: | Disc Brake |
Front Tire: | 110/70-17 |
Rear Tire: | 140/60-17 |
Muffler: | Impedance canister type |
Steering Head Angle: | Left 27°,right 30° |
Battery: | 12V10Ah |
DIMENSIONS |
|
L X W X H (mm): | 2010x740x1040 |
Seat Height (mm): | 780 |
Wheelbase (mm): | 1380 |
Min. Ground Clearance (mm): | 150 |
Max. Permissionable Weight (kg): | 150 |
Rider Capacity: | 2 Persons |
Dry. Weigth (kg): | 138 |
Engine Oil (L): | 1.1 |
Fuel Tank Capacity (L): | 16 |
Others |
Packing Size (mm): | 2080x570x1120 |
Packing Weight (kg): | 157 |
Container Loading(20FT/40GP/40HQ): | 22/40/44 |
Main Instructions:
1.CB250cc zongshen brand oil-cooled engine with balance.super strong power,low shaking
2.kenda air wheel front:110/70-17 rear:140/60-17
3.alloy rim,front and rear are disc brake
4,Stainless steel muffler
5.Safe, Charming, Reliable sport racing motorcycle

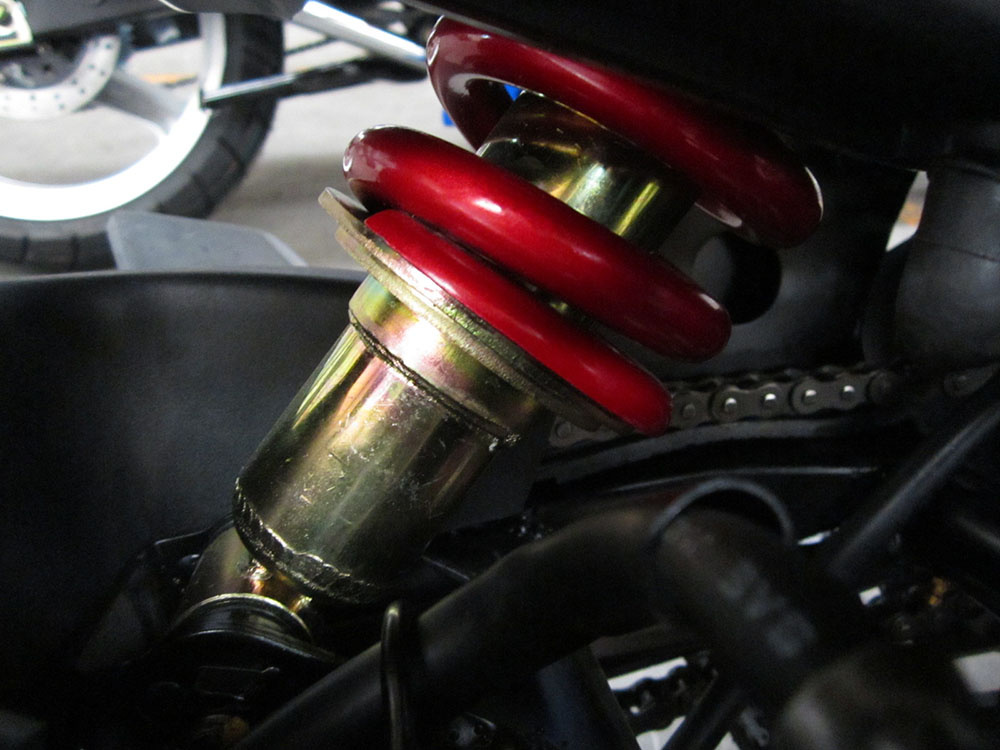

6.middle set back shock absorber,springback more quickly
Optional: 200cc engine
front double disc
digital speedometer
FAQ
1. Can I order sample?RE: Yes, we accept sample for trial order.2. How long for delivery time?RE: For sample order, our delivery time is 20 to 25 days; for one full container, it's 30days.3. Which color & decals will be available?RE: Normally, we will introduce the most popular color & decals to customer selection. And we also can design decals according the customer's requirement.4. Can I use my logo (sticker) on the motorcycle?RE: Yes, we can do OEM5. How to delivery to foreign buyer?RE: For sample order, the customer can select by sea or by air. For full container order, by sea is the best choice.6. What's the payment term?RE: Normally we use T/T7. Can I mix different models in one full container order?RE: Yes, for first order, we can accept different models in one full container for trial.8. Need I buy spare parts for first order?RE: yes, you need to buy some spare parts for future service, The quantity depends on your order. We will give you advice when you need. normally, we can supply 1 set wearing parts for free.
