Specifications
Prod Model: |
KG135-NM |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Brand: |
Kyngo |
Normal Color: |
Red/Blue/Black/White/Gray/Champagne |
Type: |
Cub Motorcycle |
Engine Type: |
4-Stroke |
Fuel: |
Gas / Diesel |
Certification: |
CE |
Condition: |
New |
Displacement: |
110-135ml |
Engine Size: |
110cc-135cc |
Braking Mode: |
Front Disc Rear Drum Brake |
Product Description

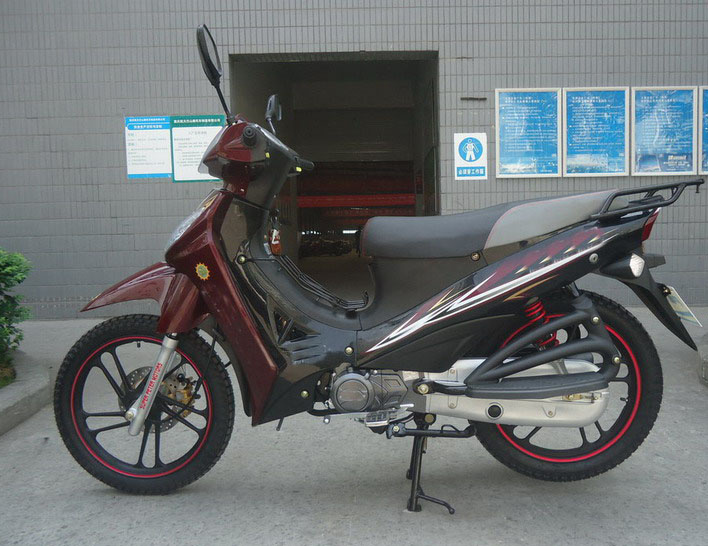

NEW air cooling 135cc cub motorcycle Cub motor bike brake discTechnical Data:engine type | Horizontal,single cylinder,4-stroke, air-cooled |
engine model No | 154FMI |
displacement(ml) | 135ml |
dimension(mm)L*W*H | 1970×685×1120 |
wheel base(mm) | 1260 |
ground distance(mm) | 100 |
brake distance(m) | ≤7m/30km/h |
start time(s) | ≤15s |
N.W(Kg) | 96 |
standard loading(Kg) | 150Kg |
Max speed(km/h) | ≥80 |
min fuel cons.(L/100km) | ≤1.9 |
brake type | Front disc rear drum |
start type | Electric/kick |
tyire size | Front:2.50-17/Rear:2.75-17 |
tyire pressure(kpa) | Front: 175, Rear:200 |
climb(°) | ≥17° |
start type | C.D.I |
seat height(mm) | 800 |
fuel tank vol(L) | 4.5 |
fuel size | 90# |
clutch type | Wet multi-disc automatically |
lubrication | Pressure splash |
lubrication oil vol(L) | 1 |
transmission type | chain |
bore*stroke(mm) | 54X55.5 |
compress ration | 9.1:1 |
standard power(kw/r/min) | 6.8/6000(1±1.5%) |
Max torque(N.m/r/min) | 6.2/6000(1±1.5%) |
other velocity ratios | gear 1:3.273 |
| gear 2:1.938 |
| gear 3:1.350 |
| gear 4:1.043 |
battery | 12V7ah |
Conveyance SKD PACKING: | 105SETS/40HQ |
Description:
1. 135cc engine, Single Cylinder, 4-stroke, Air Cooling
2. Chrome plate double back shock absorber
3. Aluminum rim, rim color can match body color
4. Normal tires, front: 2.50-17, rear: 2.75-17
5. Normal folding pedal, chromeplate muffler.
6. Brake: front /disc rear/ drum
7. steel black painted back armrest
8. Leather seat, more comfortable
9. Large space below seat, can place 1 adult helmet
10. With alarm, changeable speedometer in 5 colors light
11. support OEM and ODM order,colors and stickers can be customed
Optional:110cc/125cc engine are available.
additional helmet or glove or rain coat for each set
Packaging / Delivery /payment /shipping :
1. Packaging method:
1) CBU/SKD packing: Steel Cage+ Standard Export Cartons
2) CKD packing: engine used carton packing and be separated to the body part. Body parts are packaged with carton or with plywood box one unit by one package.
2. Delivery: 30 working days after the receipt of the deposit
3. Payment: T/T 30% deposit in advance, 70% balance against the copy B/L
4. SHIPPING: BY SEA
FAQ
1. Can I order sample?RE: Yes, we accept sample for trial order.2. How long for delivery time?RE: For sample order, our delivery time is 20 to 25 days; for one full container, it's 30days.3. Which color & decals will be available?RE: Normally, we will introduce the most popular color & decals to customer selection. And we also can design decals according the customer's requirement.4. Can I use my logo (sticker) on the motorcycle?RE: Yes, we can do OEM5. How to delivery to foreign buyer?RE: For sample order, the customer can select by sea or by air. For full container order, by sea is the best choice.6. What's the payment term?RE: Normally we use T/T7. Can I mix different models in one full container order?RE: Yes, for first order, we can accept different models in one full container for trial.8. Need I buy spare parts for first order?RE: yes, you need to buy some spare parts for future service, The quantity depends on your order. We will give you advice when you need. normally, we can supply 1 set wearing parts for free.
