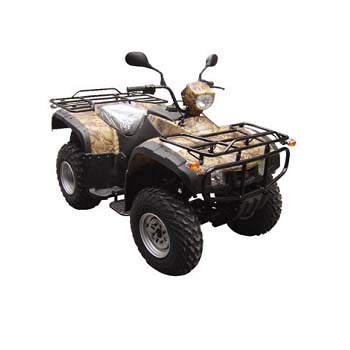

250cc Eec Atv With Yamaha Engine(KST250AE)

Specifications

Prod Model:	KST250AE

Product Description

ENGINE One cylinder Air-cooled 4-Stroke
Dispalcement(cc) 229.6ml
Tansmition shaft,5 speed, with reverse
Cylinder Dia X work stroke 71X58mm
Compressing Ratio 8.7:1
Max Speed(km/h) 85KM/H
Max Load(running smoothly) 145kg
Rated Power (kw/r/min) 10kw(7500r/min)
Max Torque N.m/(r/min) 15N.m(6000r/min)
Fuel Tank 12L
Carburetor type Plug Carburetion
Seat Height 780mm
Drive model 5 speed forword/1 reverse
Drive ratio 3.318/2.833/1.789/1.318/1.040/0.821/4.414
Clutch Wet centrifugal Automatic
Wheel shape Steel plate
oil consumption 2.7L/100km
Ignition means CDI
Oil ignites RQ-90 GB17930-1999
Brake FRONT: DISC, REAR: DRUM, foot control or left handle control
Braking 7m/30km/h
Start Electric or hand
Lubrication oil SAE20W40, SAE10W30, SAE5W30
Lubrication oil amount 1.6L
Lubricate means Press/Splash
Sparking plug D7RTC
Battery 12V12AH
Mounting 30 degree
Front Tire AT22x7-10/20Kpa
Rear Tire AT22x10-10/25Kpa
Wheelbase 1160mm
Ground Clearance 155mm
Product Size(cm) 1690X1010X1120mm
NW(kg) 220kg
GW(kg) 250kg
