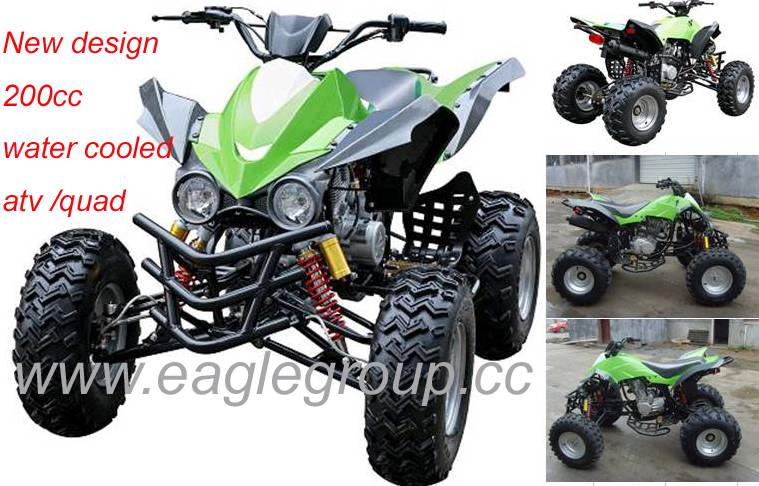

200cc Water Cooled ATV/Quad With EPA (YG-ATV200ST-2)

Specifications

Prod Model:	YG-ATV200ST-2

Product Description

Products size: 1680mmx1115mmx1170mm

Clutch: Manual clutch

Dry weight: 181KG

Loading weright: 160kg

Max speed: >= 83 km/h

Max turning angle: 28 degree

Front/Rear brake: Dual hydraulic /Hydraulic disc, the front brake is separated with the rear brake

Wheel rim: Steel

Final drive: Chain

Front/ Rear suspension: Dual A-arm/Swing arm, both front and rear are air big shock

Front/Rear tire: 23x7-10/22x10-10

Tire: Front: 24*8-12 Rear: 24*9-11

Front suspension: Independent hydraulic suspension

Productsize: 2060*1210*1230mm

Carton size: 2200*1170*880mm,

Gross /Net weight: 306/260kg

Engine: ZONGSENG 250 CC, Cylinder, 4-stroke, Water -cooled

Low gas consuming: 3.5L/100km

Lubrication oil: SE15W/40

Spark plug: D8RTC

Transmission: 4- speed + reverse, not circle. (CVT is possible )

Max power (Kw/min): 11.5Kw/7500 r/min

Max torque (Nm/min): 17.5N. M/6000r/ min

Displacement: 250cc ( optional: 200cc)

Bore*stroke (mm*mm): 67*65mm

Compression ratio: 9.2: 1

Ignition: C. D. I Starting: Electric

Lubrication: Pressure & Spray

Parking brake: Rear wheel

L*W*H (mm/in): 1600*1050*1120

Battery: 12V-9AH

Carburetor size; PZ30

Fuel capacity (liter/gallons): 5.5/1.36

Front light: 12V35W/35

Quantity of 40HQ: 63 pcs

Optional: Camouflage color + 15 USD

Meter: + 16USD

Viewfinder + 5USD
