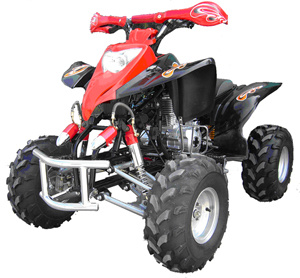

200cc ATV with EEC (BFA-200A)

Specifications

Prod Model:	BFA-200A

Product Description

Detailed Product Description
Specifications:
1) Max. Speed: ≥ 60km/h
2) Engine type: Single cylinder, water-cooled, 4-stroke, 200CC ZONGSHEN engine
3) Displacement: 196. 9cc
4) Bore x stroke: 63. 5× 62. 2mm
5) Standard power: 11. 5kW / 8, 000rpm
6) Max. Torque 14N. M / 6, 500rpm
7) Engine oil capacity: ≤ 354g/kW. H
8) Starting method: Electric
9) Drive: Chain drive
10) Brakes (front / rear): Drum / disc
11) Brake distance: ≤ 7. 00m/30km
12) Transmission gear: Five gears
13) Clutch: Manual clutch
14) Climb ability: ≥ 30 degrees
15) Tires (front / rear): 19× 7-8 / 18× 9. 50-8
16) Seat height: 800mm
17) Min. Ground clearance: 180mm
18) Dimensions (L× W× H): 1, 740× 950× 1, 100mm

Packing:
Dimensions: 1, 470× 840× 880mm
N. W.: 154kg
G. W.: 179kg

Conveyance:
Qty/20' FCL: 30pcs
Qty/40' FCL: 66pcs
