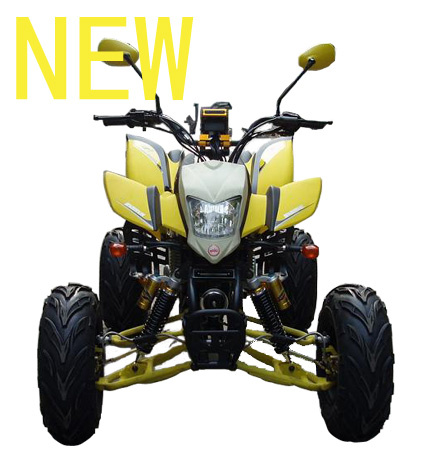

Home Zhejiang Kingma Vehicle Co., Ltd 200cc ATV with EEC Approval (KM200EA-7CB)
Specifications
| Prod Model: | KM200EA-7CB |
|---|
Product Description
EngineType: Single cylinder, water-cooling, 4-stroke
Ignition mode: CDI
Compression proportion: 9.2: 1
Start mode: Electric
Fuel tank capacity: 4L
Transmission mode: Chain
Power: 10.3kW / 7, 500rpm
Max. Torque: 15N. M / 6, 000rpm
Min. Ground clearance: 120mm
Max. Speed ≥75km / h
Power source: 12V, 9Ah
Transmission: 4 gears with one reverse gear, manual clutch
Cylinder size: 63.5 x 62.2mm
Engine oil: 1.1L
Lubrication: Press splash
Displacement: 197ml
Parking trig: Mechanical lock
Gas cylinder number: 1
Chassis
Front wheels: 21× 7-10
Rear wheels: 20×10-10
Break type (F/R): Drum / disc
Front hanging: Integral ballonet absorber
Rear hanging: Inner ballonet absorber
Dimensions
Product dimensions: 1, 680×1,115×1,120mm
Carton dimensions: 1, 480×850×880mm
Wheelbase: 1, 150mm
Height of seats: 880mm
Dry weight: 155kg
Load capacity: 150kg
Climbing degree: ≥20
Min. Turning radius: 2, 650mm
Max. Number of riders: 1
Others
Conveyance:
Qty / 20 GP: 20 units
Qty / 40 GP: 44 units
Qty / 40 HQ: 66 units
Color: Red / yellow / blue / green / camouflage
