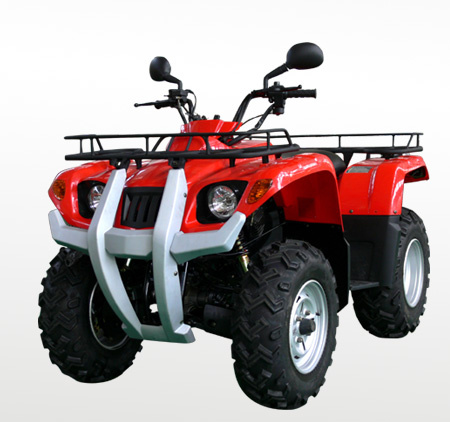

400cc EEC ATV (KM400EA-CB)

Specifications

Prod Model:	KM400EA-CB

Product Description

Engine type: Single cylinder, 4 stroke, air and oil cooled, OHC
Engine capacity: 387.4 cc
Compression ratio: 8.7:1
Ignition type: CDI electronic
Max net power: 16.5kW at 6000r / min

Max torque: 28Nm. At 5000 r/min
Climbing ability: 30 deg.
Max speed: 72km/h (45 mph)
Fuel tank capacity: 14 Litres
Starting: Electric / Hand pull

Transmission: 5 forward speeds - 1 reverse
Final transmission: Shaft drive
Clutch: Wet, hand operated
Length: 2100mm
Width: 1125mm

Height: 1175mm
Front gauge: 870mm
Rear gauge: 826mm
Seat height: 860mm
Ground clearance: 210mm

Weight: 270kg
Front tyre: 25 × 8 -12 knobbly pattern
Rear tyre: 25 × 10 - 12 knobbly pattern
Front suspension: Independent
Rear suspension: Swinging arm, single adjustable shock absorber

Front brake: Disc each side. Hydraulic
Rear brake: Sealed drum, cable operated
