Specifications
Prod Model: |
SC1601 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
16" Steel Painted Kids Scooter: |
16" Inches |
Max Capacity: |
>100kg |
Kind: |
Single |
Height Adjustment: |
Height Adjustment |
Color: |
Black |
Wheels: |
2 |
Age: |
Children |
Body Material: |
Alu+ Iron |
Wheel Material: |
Metal |
Certification: |
CE |
Product Description

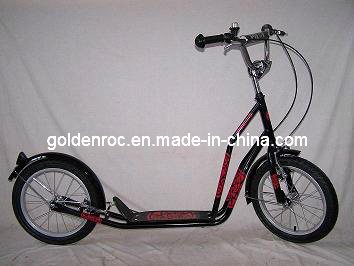

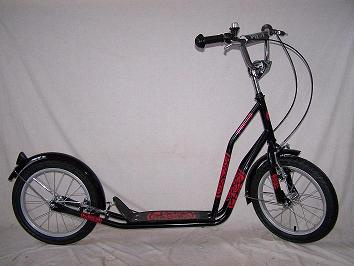

Model No.: SC1601
Description:
SPECIFICATION FOR SCOOTER (SC1601)
1. Frame: Steel frame, H/T: 30*34*200mm, T/T: 28mm, D/T: 28mm, TIG welding, end: 3/8"
2. Fork: 16"BMX, steel, 1-1/8" blades, stem: 25.4*22.2*231*95mm
3. Front Brake: V-Brake arm shoes: 60L
4. Rear Brake: V-Brake arm shoes: 60L
5. Brake Lever: 2.5F lever & clamp, alloy
6. Brake Cable: Only 2P
7. Handlebar: Steel, BMX U style W/crossbar W: 620mm R: 180mm
8. H/Stem: Four bolts bird handlebar w/stem D: 22.2, L: 185
9. Grips: PVC mushroom, L: 110mm
10. Pad Set: PVC 2PCS for handlebar and stem with customer's design
11. Rims: Alloy front 16"*1.75"*20H, rear 16"*1.75"*20H
12. Front Hub: Steel 3/8"*20H*14G*93W*125mm
13. Rear Hub: Steel 3/8"*20H*14G*93W*125mm
14. Spokes: Steel 14G w/steel nipple
15. Tires: Front 16"-1/2"*2-1/4", rear 16"-1/2"*2-1/4", rubber tires
16. Tube: Front 16"*1.75", rear 16"*1.75", A/V tube
17. H/Parts: Steel set of 8PCS
18. Footplate: Plastic 260mm*50mm, BK
19. Stand: 16" steel 3.0T H: 115mm
20. Mudguard: F/R steel painted long fender w/stay
21. Bell: Steel mini bell
22. Carton: 5-PLY for export yellow
Model No. |
Main Description |
Carton Size |
N. W. /G. W. |
QTY. /20' |
QTY. /40' HQ |
FOB Price |
SC1601 |
1. Frame: steel painted frame
2. Fork: steel painted fork
3. Handlebar & Stem: steel painted
4. Rim: 16” alloy
5. Tyre & Tube: 16” air tyre
6. Brake: front and rear V-Brake
7. Footplate: plastic black
8. Accessaries: steel painted mudguard, bell |
102X15.5X50cm |
8.4kgs/9.6kgs |
350PCS |
820PCS |
USD33.00 |
