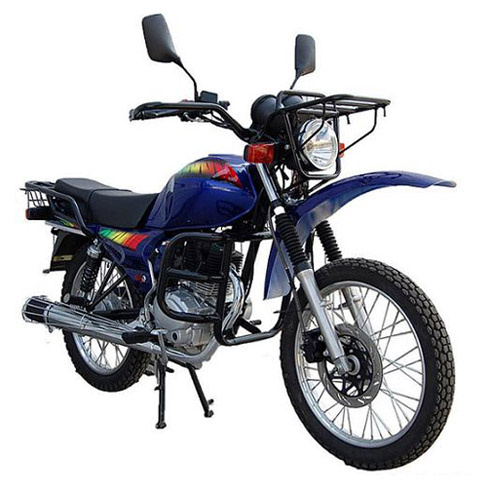

Home Lonxia Motorcycle Co.,Ltd. 125cc,150cc, 200cc Motorcycle (LM125GY-5)
125cc,150cc, 200cc Motorcycle (LM125GY-5)
| Price: | Negotiable |
|---|---|
| Trade Terms: | by sea |
| Min Order: | 32/Piece |
Specifications
| Prod Model: | LM125GY-5 |
|---|---|
| Certification: | EPA |
| Starting System: | Kick Start and Electric Start |
| Engine: | 4 Stroke |
| Displacement: | 51-125CC |
Product Description
Feature: 125cc. 4 stroke, electric&kick start, manual clutch, front&rear drum brake, spoke wheel, shock absorber, round light, front carrier.Specifications:
Engine type: Single cylinder, air cooling, 4 stroke
Clutch method: Manual clutch
Ignition method: C. D. I.
Start method: Electric&kick start
Cylinder: Single
Transmission: Chain
Displacement(ml): 124
Bore*stroke(mm): 56.5*49.5
Compression ratio: 9.2: 1
Rated power(kw/r/min): 7.2/8500±500
Maximum torque(N. M/r/min): 8.5/7000±500
Lubrication: Splash
Gear: 5
Dimensions(L*W*H)(mm): 2050*930*1115
Wheel base(mm): 1290
Seat height(mm): 790
Min. Turning radius(mm): 2100
Min. Ground clearance(mm): 200
Rider capacity: 2
Brake: Front&rear drum brake
Front wheel: 2.75-18
Rear wheel: 3.00-18
Fuel tank capacity(L): 7
Engine oil capacity(ml): 800
Climbing capacity: E15
Max. Load(kg): 150
Max. Speed(kw/h): 85
Battery: 12V6.5Ah
Packing size(L*W*H)(mm): 1470*410*860
Net weight(kg): 114
Gross weight(kg): 134
