Home Lonxia Motorcycle Co.,Ltd. 200cc ATV Quad (LM200ST-B)

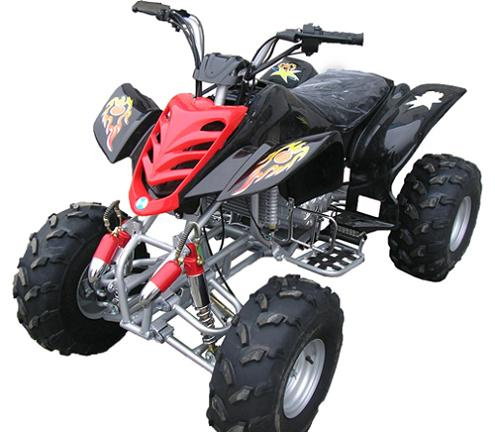

200cc ATV Quad (LM200ST-B)
| Price: | Negotiable |
|---|---|
| Trade Terms: | by sea |
| Min Order: | 30/Piece |
Specifications
| Prod Model: | LM200ST-B |
|---|---|
| Certification: | EEC |
| Transmission System: | Chain Drive |
| Engine Type: | 4 Stroke |
Product Description
Specifications:Engine type: Single cylinder, water cooling, 4 stroke
Clutch: Manual wet multi-plate
Ignition method: C. D. I.
Start method: Electric
Cylinder: Single
Transmission: Chain
Displacement(ml): 196
Bore*stroke(mm): 63.5*62
Compression ratio: 9.2: 1
Rated power(kw/r/min): 11/7500±500
Maximum torque(N. M/r/min): 13/6000±500
Lubrication: Splash
Gear: 4 forward gear with reverse gear
Dimensions(L*W*H)(mm): 1880*990*1080
Wheel base(mm): 1000
Seat height(mm): 770
Min. Turning radius(mm): 2400
Min. Ground clearance(mm): 140
Rider capacity: 2
Brake: Front drum&rear disc
Front wheel: 21*7-8
Rear wheel: 20*9.5-8
Fuel tank capacity(L): 5
Engine oil capacity(ml): 900
Climbing capacity: E20
Max. Load(kg): 150
Max. Speed(kw/h): 50
Battery: 12V9Ah
Packing size(L*W*H)(mm): 1480*850*780
Net weight(kg): 150
Gross weight(kg): 160
