Specifications
Prod Model: |
PB209 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
12" Steel Painted Scooter: |
12 Inches |
Max Capacity: |
50-100kg |
Kind: |
Single |
Height Adjustment: |
Height Adjustment |
Color: |
Blue |
Wheels: |
2 |
Age: |
Children |
Body Material: |
Alu+ Iron |
Wheel Material: |
Metal |
Certification: |
CE |
Condition: |
New |
Product Description

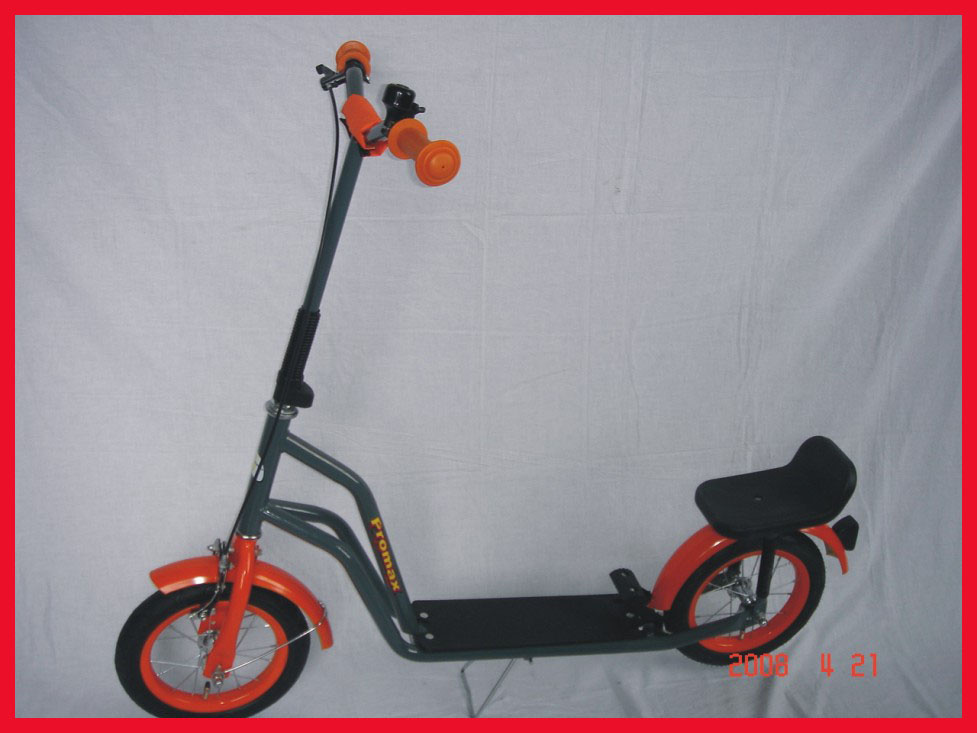

Model No.: PB209
Discription:
SPECIFICATION FOR SCOOTER (PB209)1.Frame: steel frame,H/T:30*34*160mm,T/T:28mm,D/T:28mm,TIG welding,end:3/8"
2.Fork: 12"BMX,800# steel,1-1/8" blades,stem:25.4*22.2*191*85mm
3.Front Brake: caliper brake arm shoes:60L
4.Rear Brake: steel foot brake
5.Brake Lever: 2.5F lever & clamp,plastic
6.Brake Cable: only 2P
7.Handlebar: steel,BMX,W:480mm R:180mm
8.H/Stem: one-pc with handlebar
9.Grips: PVC mushroom,L:105mm
10.Pad Set: nil
11.Rims: steel painted front 12"*1.75"*16H,rear 12"*1.75"*16H
12.Front Hub: steel 3/8"*16H*14G*85W*120mm
13.Rear Hub: steel 3/8"*16H*14G*85W*120mm
14.Spokes: steel 14G w/steel nipple
15.Tires: front 12"-1/2"*2-1/4",rear 12"-1/2"*2-1/4", rubber tires
16.Tube: front 12"*1.75" ,rear 12"*1.75",A/V tube
17.H/Parts: steel parts
18.Footplate: plastic 260mm*50mm,BK
19.Stand: 12" steel 3.0T H:105mm
20.Mudguard: nil
21.Bell: steel mini bell
22.Saddle:plastic saddle w/stay
23.Carton: 5-PLY for export yellow
