South America,Southeast Asia,Africa,Mid East,Eastern Asia
Model:
CD70 Cy80
Key Words:
Motorcycle Parts
Color:
Black
Package:
Bag
Type:
Motorcycle Engine Assembly
Certification:
SGS
Product Description
model
CD70 CY80
This part is processed with double metals casting that contain boron under the national standard of GB/T1150-1993, which makes the cylinder have remarkable advantages of strong hardness, abrasion resistance, oil saving and strong ability of heat dispersing. Bored and grinded with Germany equipment, the cylinder's size accuracy and GD&T achieve T grades. Besides, the grinding reticulation distributes regularly and it has advantages of equal oil film distribution, fine reciprocating lubrication and quite limited oil consumption.
Material
Model
Weight/kg
Dimension
Diameter
External circular
Valid Height
Presidents
Iron
C70
1.69
0.47*0.28*0.12
47
52.5
62.65
88.5
C100
2.37
0.52*0.28*0.12
50
54.5
69
95
C110
2.41
0.52*0.28*0.12
52.4
56.5
69
95
C108
2.41
0.52*0.28*0.12
52.4
56.5
69
95
JY110
2.56
0.56*0.30*0.12
49/51
56.5
64.85
91.8
BAJAJ100
2.7
0.56*0.30*0.12
53
58.5
77
98
CY80
2.92
0.60*0.30*0.15
47
58
81.5
107
DX100
3.05
0.60*0.30*0.15
52
58
83.5
110
V50
2.44
0.60*0.30*0.16
40
50
60.7
87.1
DAYANG109
2.95
0.52*0.28*0.12
50
54.5
78.8
98.5
Aluminum
CG200
1.68
0.48*0.32*0.23
63.5
68
76
103.6
CB125
1.57
0.52*0.28*0.12
56.5
62.5
68
97
BAJAJ135
1.41
0.52*0.28*0.12
54
59
66
95.6
WY125
1.65
0.52*0.28*0.12
56.5
62.3
68
96.5

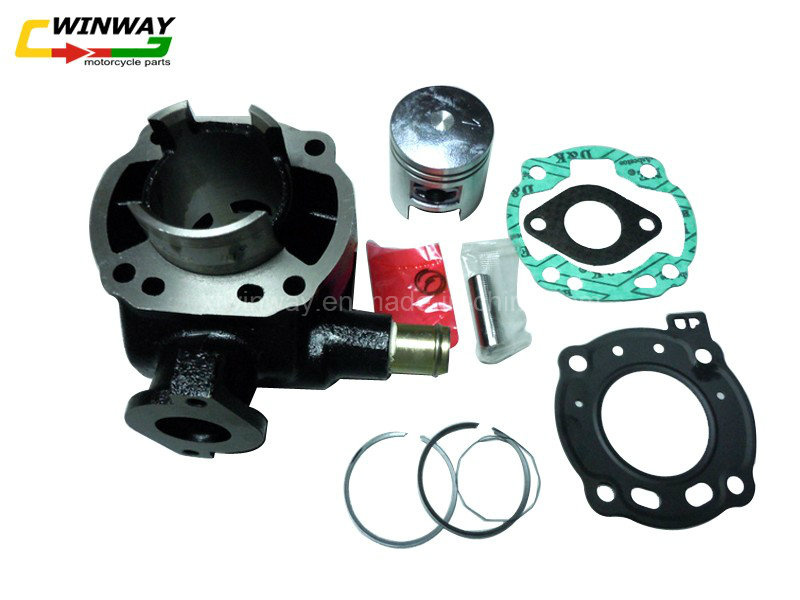

Features of High Quality cylinder as following : (1) Fine appearance ,free of burrs, clean and smooth scavenge ports and fins ,good heat dissipation (2) Cylinder are made of choiced boron alloy cast iron with excellent wear resistance and good metallographic structure (3) clear bore surface cross hatch pattern, good oil-retaining characteristic, resulting great increase in engine life (4) precise machining size , good and location allowance (5)we can supply our cylinder together with piston and piston ring ,pin , clips and gasket , spark plug and etc .
Advantage: Good package, Competitive Price, Fast Shipment 1. Payment: We accept L/C, T/T, Western Union, or other payment. 2. Delivery: Normally we will deliver the goods within 20-25 days after the receipt of the above payment. 3. Shipment: Generally for order below 10 cartons, we'd choose express such DHL, TNT, EMS and so on,it will take 4-5 days to reach you. Also we can ship by air or by sea, it depend on customer's choice. 4. Sample: We can send you sample for checking our quality, you need pay sample fee and express fee, we will refund you once you place bulk order to us, this is to show the sincerity of business cooperation. Advantage: Good package, Competitive Price, Fast Shipment Remarks: All of parts can be customized.
