Specifications
Product Description

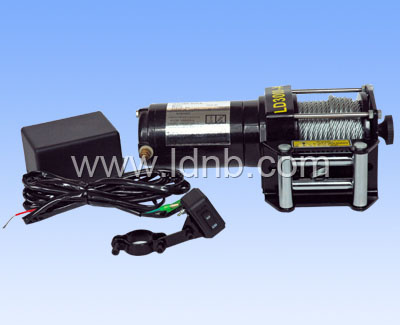

LD3000-A
Rated line pull: 3000lb (1361kg)
Motor: 0. 9kw, 1. 2HP 12V DC Permanent Magnet
Gearing Differential Planetary
Gear ratio: 153: 1
Freespooling clutch Pull and turn
Braking Action Dynamic
Wire Rope: 5. 5mm*9. 2m
Dimensions: 300mm(L) x 110mm(W) x 105mm(H)
Drum Diameter: 1. 25"(31. 75)
Drum Length: 2. 9"(74mm)
