Specifications
Prod Model: |
HHD-WD-50TL |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Name: |
Electric Disabled Scooter |
Battery: |
12V*2 38ah |
Motor: |
400W |
Max.Speed: |
8km/H |
Max.Climbing Capability: |
15° |
Wheel: |
260X85 Mm |
Wheel Hub: |
Aluminum Alloy |
Travel Range: |
40km |
Stainless Steel: |
Available |
Max.Loading Weight: |
120kgs |
Load Capacity: |
100-200kg |
Climbing Capability: |
12?? |
Accessories: |
Seat Belt |
Certification: |
EEC |
Folded: |
Unfolded |
Voltage: |
24V |
Product Description

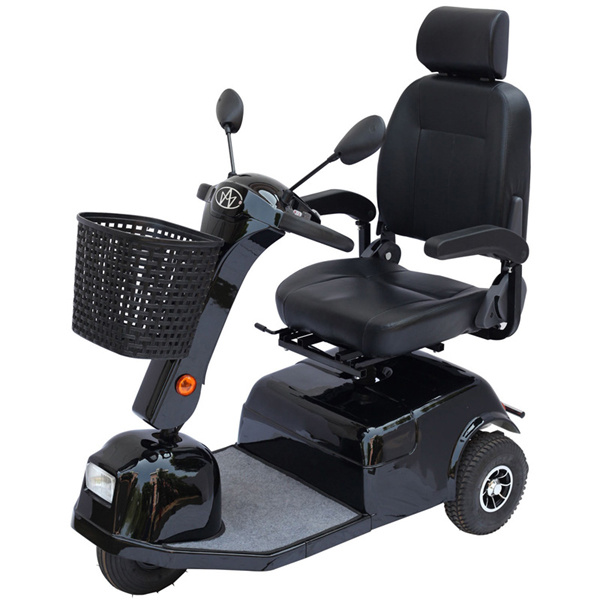

Wido mobility scooter/electric disabled scooter
1)Developed as a middle luxurious scooter
2)it is a cost-effective scooter
3)with assembled luxurious and comfortable seat which back rest can be 180 degree adjusted
4)the front and rear shock absorbers,it makes driving more comfortable
5)With LED displayer
Battery |
12VX2 38AH |
Motor power |
400W |
Controller |
PG 70A |
Electric Brake |
Warner 24v |
Overall dimensions |
1250×640×1170mm |
Weight w/o battery |
59 kg |
Max. speed (km/h) |
8km/h |
Turning Radius |
1.15m |
Max. climbing grade |
15° |
wheel |
260X85 mm |
Drive System |
24V Sealed Mid Transaxle |
Max. loading weight |
120kgs |
Total Weight w/Bat. |
87kg |
Ground Clearance |
60mm |
Travel Range |
up to 40 KM |
Free Wheeling |
Manual |
Wheel Hub |
Aluminum Alloy |
Seating |
360° Swivel and Position Adjustment - Foldable seat w/ arm rest and head rest |
Qty/20 |
42pcs |
Qty/40 |
90pcs |
Qty/40HQ |
108pcs |
charger (Included) |
5A |
