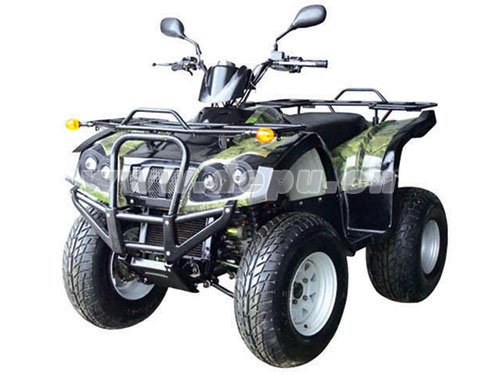

Home Depu Industry & Trade Co., Ltd. Water-Cooled, 260cc, Single-Cylinder 4-Stroke EEC And EPA ATV (DP-ATV260(EEC-EPA)-B)
Water-Cooled, 260cc, Single-Cylinder 4-Stroke EEC And EPA ATV (DP-ATV260(EEC-EPA)-B)
| Price: | Negotiable |
|---|---|
| Trade Terms: | Sea |
| Min Order: | 1 |
Specifications
| Prod Model: | DP-ATV260(EEC-EPA)-B |
|---|
Product Description
DP-ATV260(EEC-EPA)-BSpecification:
260cc, 4-stroke, water-cooled, shaft drive with reserve ATV/Quad.
1) Engine type: 1-cylinder, 4-stroke, liquid-cooled
2) Max power (kW/min): 12.5/7,500
3) Max torque (N.m/min): 17.6/5,500
4) Displacement: 260cc
5) Compression ratio: 10:1
6) Ignition: DC-C.D.I
7) Starting: electric
8) Transmission: shaft 2WD, auto clutch
9) Parking brake: rear wheel
10) Front/rear suspension: dual A-arm/swing arm
11) Front/rear brake: dual hydraulic disc/hydraulic disc
12) Front/rear tire: AT 24 x 8-12/24 x 11-10
13) Length (mm/in): 2,100/82.7
14) Width (mm/in): 1,170/46.1
15) Height (mm/in): 1,170/46.1
16) Wheel base (mm/in): 1,265/49.8
17) Seat height (mm/in): 860/33.9
18) Ground clearance (mm/in): 190/7.5
19) Fuel capacity (liter/gallons): 12/3.2
20) Dry weight (kg/lbs): 200/440
Conveyance:
Qty40' HQ: 29pcs
