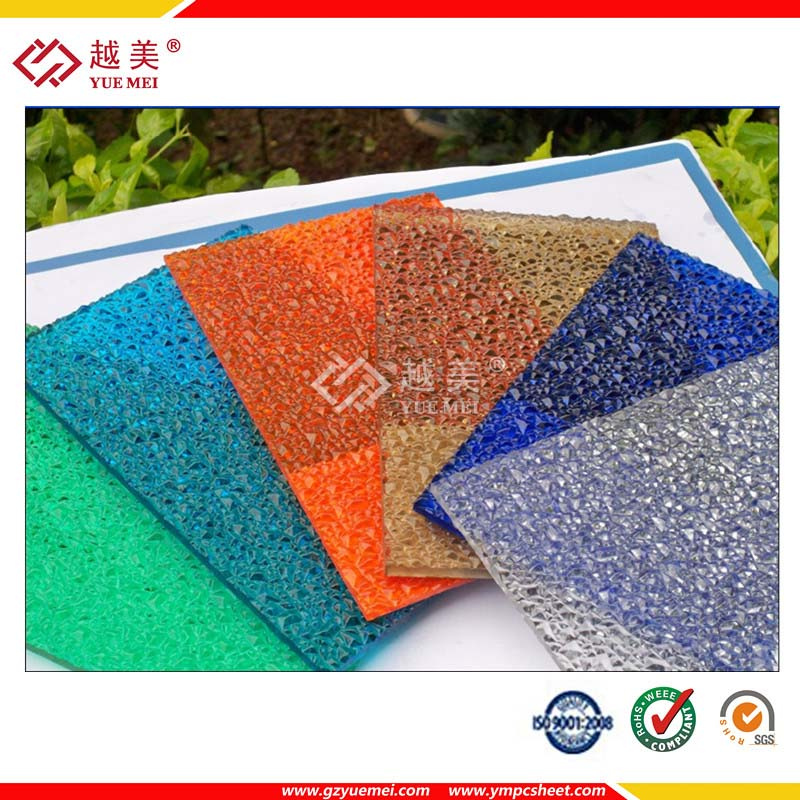

UV Protection Diamond Polycarbonate Sheet

Specifications

Prod Model:	YM-PC-011
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Service Temperature(C):	-40c--+120c
Quality:	Grade a
Standard Color:	Clear, Bronze, Blue, Green, Lake Blue, Opal
Certification:	ISO9001: 2008, SGS, RoHS
Type:	Polycarbonate
Material:	PC

Product Description

Material: From Germany Bayer, GE lexan.
Production line: 5 lines, Workshop requirement: ISO9001: 2008, 9S
Quality: 100% virgin Bayer material, 50 micron UV layer, 10 years warranty, approved by ISO9001: 2008, SGS, RoHS, delivery time 7-15 days

PC diamond sheet, PC embossed sheet are produced based on Manufacturing technology of PC solid sheet, changing part mould and processes, so that the surface have physical changes happen, so having optical properties and visual, sensory changes due to the structural changes in the surface.
PC embossed sheet, diamond sheet is consistent with the solid on mechanical properties, electrical properties, flame retardant, anti-ultraviolet capability, different from the appearance and optical
Performance, which through its own surface convex-concave shape, convex-concave density and size so that reach the effect of non-see fuzzy by scattering, transmission.

Thickness: 2mm-8mm
Maximum width: 2100mm
Color: Clear, PAL, lake blue, green blue, green, bronze

Item	Standard width (mm)	Thickness (mm)	Weight (kg/ m 2 )	Min curving radius (mm)	General color	Remark
PC diamond sheet	1220 1560 1820       2100	2.0	2.4	360	Clear Opal Blue Green Bronze Orange	1.5mm-3.0mm, 30m/roll 3.6mm-4.5mm, 18m/roll 5mm or above packed as sheet
		2.4	2.88	430
		3.0	3.6	540
		3.8	4.56	680
		4.0	4.8	720
		5.0	6	900
		6.0	7.2	1080
