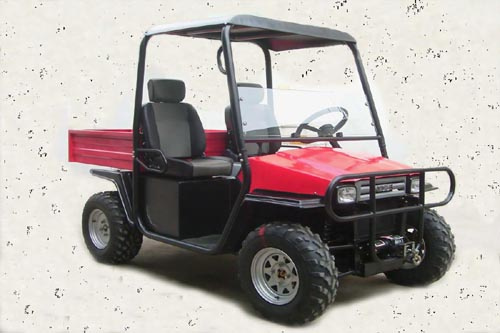

UTV HX-500

Specifications

Prod Model:	UTV HX-500

Product Description

UTV Specifications
Engine
493cc, Single Cylinder, Water Cooled, 4-Valve SOHO
Bore* Stroke: 87.5mm * 82mm
Compression Ratio: 10.2: 1
Carburetion: Mikuni BSR36
Max Power: 24kw/6500rpm
Max torque: 38.8N. M/5500rpm
Ignition: DC-CDI
Idle Speed: 1300rpm
Starting System: Electric
Transmission: CVT Automatic with High, Low, Neutral, Rev
Drive Train: Shaft, On-Demand 2WD, 4WD, Rear Diff Lock
Spark Plug: DPR7EA-9(NGK)

Chassis
Front Suspension: Independent Double Wishbone, 4"w/Preload Adjustment
Rear Suspension: Independent Double Wishbone, 4"w/Preload Adjustment
Front Brake: Dual Hydraulic Disc, Twin Piston
Rear Brake: Dual Hydraulic Disc, Mechanical parking system
Front Tire: 25*8-12
Rear Tire: 25*10-12

Dimension
L*W*H: 111.5"*54.8"*74.4"(2830mm*1390mm*1890mm)
Wheelbase: 72.9"(1850mm)
Turning Radius: 157.5"(4000mm)
Ground Clearance: 11.2"(285)
Fuel Capacity: 6.6Gallons (25L)
Dry Weight: 1, 300Lbs
Bed Capacity: 600Lbs
Towing Capacity: 1, 500 Lbs

Other
Power Point: Standard
Lighting: Dual 30W Krypton Headlights & Dual 21/5W Brake lights
Dashboard LCD Speedometer, Fuel meter, Gear indicator, 4WD indicator
Glove box Standard
Colors: Red, Olive-Green and Orange
Winch (3, 000Lbs)
Windshield Optional
CD/FM/AM RADIO Optional
Canopy Optional
Fog Light Optional
Aluminum Wheels Optional
