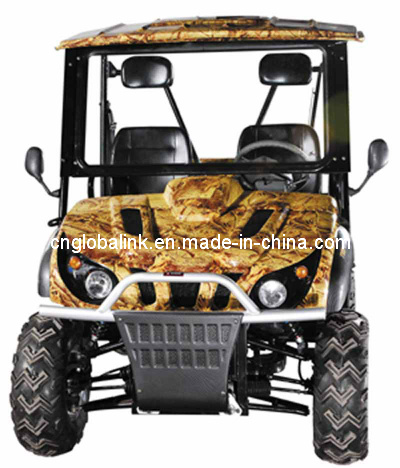

UTV 800CC
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | T/T,Paypal,Money Gram,Western Union |
Specifications
| Prod Model: | GLUTV800 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Volume: | <10000L |
| Type: | UTV |
| Transmission System: | Shaft Drive |
| Transmission Type: | Automatic |
| Certification: | EPA |
| Engine Type: | 4 Stroke |
| Fuel: | Gas / Diesel |
| Displacement: | 250CC |
| Maximum Speed: | 50-75 km/h |
| Brake Type: | Disc Brake |
| Condition: | New |
| Power: | 800-1000W |
| Brand: | Gl |
Product Description
MODEL: TNS-UV800AWHOLE MACHINE DIMENSIONS
Overall Length: 2700mm
Overall Width: 1450mm
Overall Height: 1830mm
Wheelbase: 1750mm
Front Track: 1450mm
RearTrack: 1450mm
Ground Clearance: 250mm
ENGINE
Type: 3 cylinders, 4-stroke, liquid-cooled
Bore x Stroke: 68.5mm x 72mm
Displacement: 796cc
Compression ratio: 9.4: 1
Carburetor: LJ368QE
Max Power: 29.5/5000(kw/r/min)
Maximum Torque: 65 N. M /(3000~4000rpm)
Starting: Electric
Ignition: C. D. I
Lubrication: Force & Splash
Transmission: Manual clutch, 4-shift/reverse
Spark Plug: F6T or F6TC
Plug gap: 0.7± 0.1mm
Fuel type: RQ93 (unleaded)
Lubricate oil: SAE-15W/30
CAPACITIES
Turning radius: 157.5 in(4000mm)
Fuel tank: 25.0L
Engine oil: 2900ml
Coolant: 4000ml
Starting: <5s
Climbing: 20° -35°
Battery: 12V36Ah
Head Light: 12V 80W/Both
Tail Light: 12V 52W/Both
Fuse: 35A
Max speed: 80 km/h
CHASSIS
Front, Rear brake: Hydraulic disc, right foot control
Front tire: 25× 10-12
Rear tire: 25× 10-12
Front Suspension: Independent Dual A-Arm
Rear Suspension: Independent Dual A-Arm
Drive Train: 2WD/4WD Shaft
T IRE PRESSURE
Front: 205kpa 2.1kg/cm2 30psi
Rear: 205kpa 2.1kg/cm2 30psi
WEIGHT
Max load capacity: 500kg
Net Weight: 565kg
CONTAINER LOADS
20' CONTAINER: 6 PCS
40' HQ CONTAINER: 14 PCS
