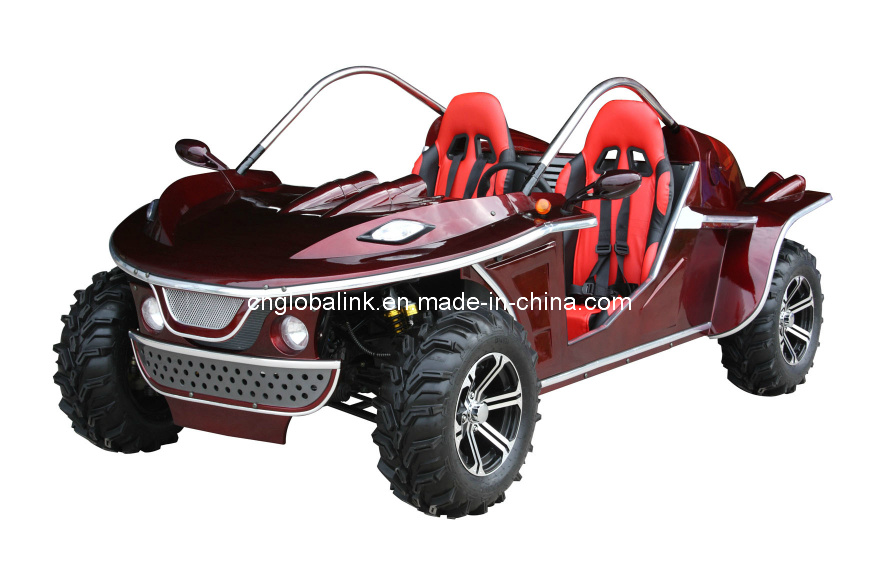

UTV 800
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | T/T,Paypal,Money Gram,Western Union |
Specifications
| Prod Model: | GLUTV800 BUGGY |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Volume: | <10000L |
| Type: | UTV |
| Brand: | ArcticCat |
| Transmission System: | Shaft Drive |
| Transmission Type: | Manual |
| Certification: | EEC |
| Engine Type: | 2 Stroke |
| Fuel: | Gas / Diesel |
| Displacement: | 200CC |
| Structure: | Two Side Doors |
| Maximum Speed: | <50 km/h |
| Brake Type: | Drum Brake |
| Condition: | New |
| Power: | 500-800W |
Product Description
TNS-800BUGGYENGINE
Type: 3 cylinders, 4-stroke, liquid-cooled
Bore x Stroke: 66.5mm x 72mm
Displacement: 812cc
Compression ratio: 9.5: 1
Max Power: 43/6000(kw/r/min)
Maximum Torque: 70 N. M /(3500~4000rpm)
Starting: Electric
Ignition: C. D. I
Lubrication: Force & Splash
CHASSIS ETC:
Transmission: "Manual clutch, 5 shift/reverse
"
Driving wheel: 4 wheel drive and 2 wheel drive selectable
Suspension, front/rear: "Front shock absorb with reservior suspension, rear spring suspension
"
Brakes, front/rear: Hydraulic disc brake both front and rear
Tires, front/rear: 27*11-14 both front and rear
Fuel capacity: 30L
G. W/N. W: 600KGS/570KGS
DIMENSIONS:
Wheelbase: 2350mm
LENGTH 3250mm
WIDTH 1700mm
HEIGHT 1360mm
Min ground clearance: 250mm
Max speed: 100kms/h
CONTAINER LOADS
20' CONTAINER: 2 PCS
40' HQ CONTAINER: 6 PCS
