Utility Truck (XYUTV400)

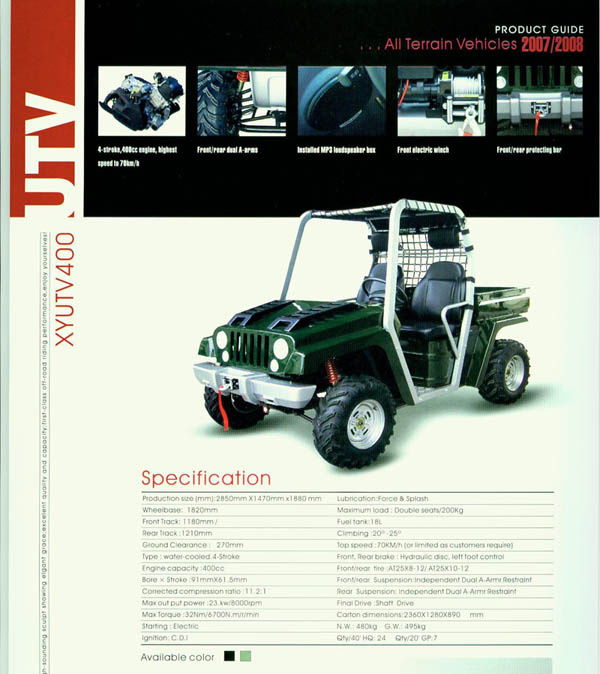

Specifications

Prod Model:	XYUTV400

Product Description

Add stereo system
Production size(mm)2850mm*1470mm*1880mm
Wheelbase: 1820mm
Front truck: 1180mm
Rear track: 1210mm
Ground clearance: 270mm
Type: Water-cooled, 4-stoke
Engine capacity: 400cc
Bore*stroke: 91mm*61.5mm
Corrected compression ratio: 11.2: 1
Max torque: 32Nm/6700N. M/min
Starting: Electric
Ignition: C. D. I
Lubrication: Force&Splash
Maximum load: Double seats/200kg
Fuel tank: 18L
Climbing: 20 degree-25 degree
Top speed: 70km/(or limited as customers require)
Front, rear brake: Hydraulic disc, left foot control,
Front/rear tire: AT25*8-12/AT25*10-12
Front/rear suspension: Independent dual A-Arm Restraint
Final Drive: Shaft drive
Carton dimensions: 2360*1280*890 mm
N. W.: 480kg G. W.: 495 Kg
Qty/40'HQ: 24 Pieces
