Charging Time:
8~10hours
Lamp:
LED
Max Load:
120kgs
Brake:
Front Drum Brake/ Rear Drum Brake
Climbing Ability:
15degree
Color:
White, Orange
Front Fork:
Hydraulic Pressure
With 3 Different Kinds Of Max Speed:
(1speed:9km/H,2speed:15km/H,3speed:25km/H)
N.W/G.W:
80kgs/95kgs(48V20ah)
Export Carton Dimension:
137X60X70cm
Product Description

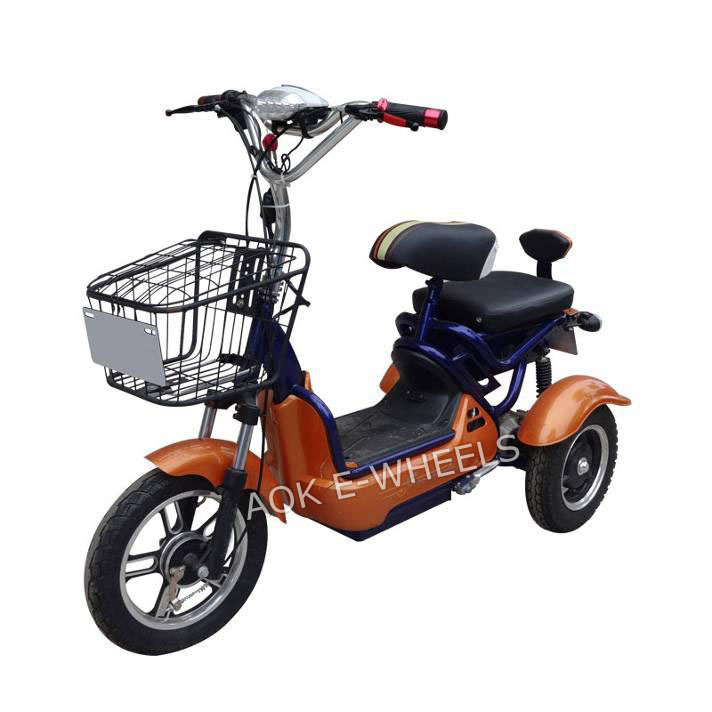

Two Seat Electric Mobility Scooter with Basket (TC-013)
Electronic specification: 1.Motor: different speed brushless motor 500W 2 .Battery: 48V20Ah sealed lead-acid battery All battery with electric protection circuit 3.Dashboard: common meter 4.Controller: 500W Brushless controller 5.Charger:110V60HZ 6.Charging time:8~10hours 7.Lamp: LED
Performance & Main components: 1. Max.speed: 25km/h 2. Range: 55km(distance by riders weight,terrain,road surface etc.) 3.Max load: 120KGS 4.Tyres: Front: 14*2.5; Rear: 8-3.00 (tubeless) 5.Front brake: drum brake 6:Rear brake: drum brake 7.Climbing ability: 15degree 8.Color: white, orange 9.Front fork: hydraulic pressure 10.Throttle: Twist intelligent speed control 11.With 3 different kinds of max speed (1speed:9km/h,2speed:15km/h,3speed:25km/h)
Packaging: Unit packaging: Each in Color Box Packing : Each in a carton box N.W/G.W: 80kgs/95kgs(48V20AH) Qty / Export carton: 2 pc/ctn Export carton dimension:137X60X70CM 1x20'footer FCL quantity: 54 pcs 1x40'footer FCL quantity: 126pcs 1X40'HQ: 126 pcs
Electronic specification:
Motor
different speed brushless motor 500W
Battery
48V20Ah sealed lead-acid battery All battery with electric protection circuit
Dashboard
common meter
Controller
500W Brushless controller
Charger
110V60HZ
Charging time
8~10hours
Lamp
LED
Performance & Main components:
Max speed
25km/h
Range
55km (distance by riders weight,terrain,road surface etc.)
Max load
120KGS
Tyres
Front: 14*2.5, Rear: 8-3.00 (tubeless)
Front brake
drum brake
Rear brake
drum brake
Climbing ability
15degree
Color
white, orange
Front fork
hydraulic pressure
Throttle
Twist intelligent speed control
Derailleur
With 3 different kinds of max speed (1speed:9km/h,2speed:15km/h,3speed:25km/h)
Packaging:
Unit packaging
Each in Color Box
packing
Each in a carton box
N.W/G.W
80kgs/95kgs(48V20AH)
Qty / Export carton
2 pc/ctn
Export carton dimension
137X60X70CM
1x20'footer FCL quantity
54 pcs
1x40'footer FCL quantity
126pcs
1X40'HQ
126 pcs
MOQ:36PCS
Business Terms:
1.The price above are based on MOQ. 2.Lead time:7 days for sample order.25 days for one container. 3.The quotation is valid within 15 days, we reserve the right to modify the prices if needed. 4.The prices above are for your reference only, it is subject to our final confirmation.
Payment Terms:
1.100% payment in advance to start production,when you buy the sample. 2.30% T/T in deposit to start production, the balance in 7 days by T/T against the copy of Bill of lading. 3.L/C at sight(when the amount above 30000 dollars) 4.Paypal and Western Union are also accepted. Warranty: 8 months for battery; 1 year for motor; 1 year for controller; 1 year for charger. (The warranty is based on broken not made by human being.) If any inquiries or needs any help, please contact me at any time, i will reply you as soon as possible.
