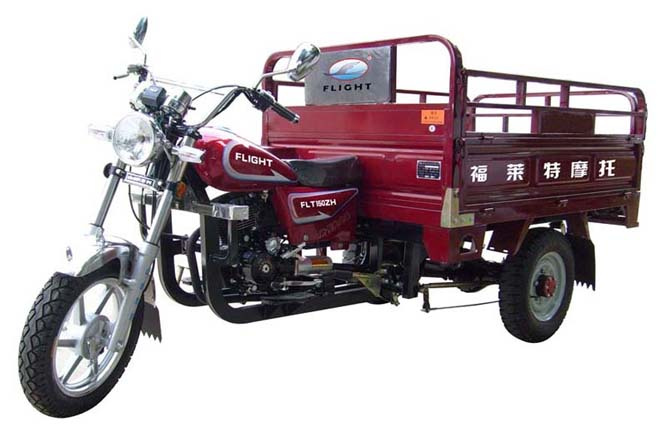

Tricycle (FLT150ZH-A)

Specifications

Prod Model:	FLT150ZH-A

Product Description

Technical Information:
Type: FLT150ZH-A
SPECIFICATIONS OF FRAME
Measurement (L X W X H): 3270*1250*1280
Drive mode: Shaft-drive
Starting: Electric/kick
Front Tire: 110/90-16
Rear Tire: 5.00-12
Front Brake: Drum
Rear Brake: Drum
Break operate mode: Front hand break
Rear foot break
Axle distance (mm): 2100

Ground clearance 175mm
Wheel Base (mm): 1050
Max. Speed: 75km/h
Max loading: 500kgs
Net Weight: 350kg
Cargo box: 1200*1700*840
SPECIFICATIONS OF ENGIN
Engine model: 162FMJ
Type Of Engine: 1cylinder, wind cool, 4stroke
Displacement 149.4ml
Compression Ratio 9.0: 1
Fuel Tank Volume: 10L
Rated power: 8.5kw/9000r/min
Max torque: 10.0N. M/7500r/min
Lubricate Mode Pressure & Splash
