Specifications
Prod Model: |
UTV800 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Starting System: |
Electric |
Transmission System: |
Shaft Drive |
Transmission Type: |
Automatic |
Certification: |
ISO9001 |
Engine Type: |
4 Stroke |
Fuel: |
Gas / Diesel |
Structure: |
Two Side Doors |
Maximum Speed: |
>75 km/h |
Brake Type: |
Disc Brake |
Condition: |
New |
Displacement: |
800cc |
Power: |
43kw |
Product Description

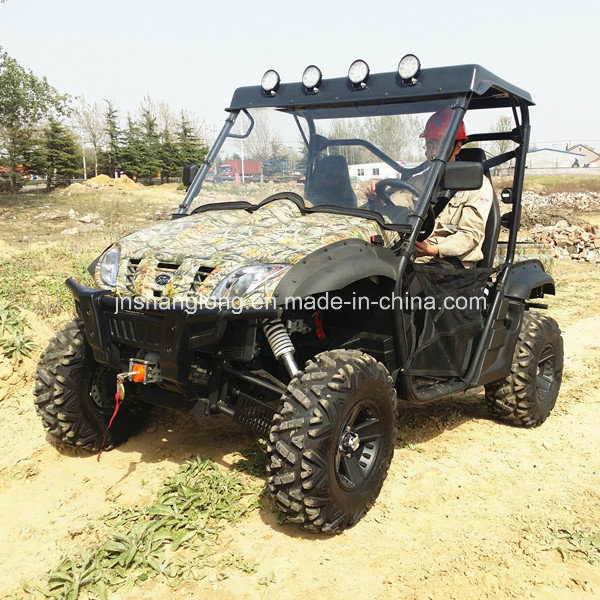

Top Standard 800cc EEC UTV
Brief Introduction:
Our 800CC UTV has single cabin and double cabin. We adopt the advanced SOHC engine, constant virable automatic transmission(CVT), DELPHI efi system, independent suspension and hydraulic spring composite damping. The performance is stable and the power is enough. The cabin is very comfortable. It is a practical and nice UTV.
Product Configuration:
| Items | Unit | Specification |
1 | Overall size(L*W*H) | mm | 2860, 3660×1650×1850 |
2 | Wheelbase | mm | 1900(2 seats) 2700(4 seats) |
3 | Tread | mm | front:1380 rear:1370 |
4 | Minimum ground clearance | mm | 320 |
5 | Curb weight | kg | 525 |
6 | Retaed lo | kg | 770 |
7 | Maximum speed | km/h | ≤95 |
8 | Brake type(F/R) |
| Disc |
9 | Brake operating mode |
| Foot activated |
10 | Tire |
| F:26×9-12 R:26×11-12 |
11 | Fuel tank capacity | L | 27 |
12 | Engine model |
| 2V91MW |
13 | Engine type |
| V-type double cylinde, 4-stroke, SOHC, water cooling, 4 valves |
14 | Bore X stroke | mm | 91×61.5 |
15 | Cylinder working volume | ml | 800 |
16 | Compression ratio |
| 10.3:1 |
17 | Retaed power | kw/(r/min) | 43/6000 |
18 | Fuel consumption | L/100km | ≤8 |
19 | Fuel type |
| Above 93 |
20 | Lubrication oil type |
| Above SAE 10W40 SL |
21 | Clutch |
| Automatic centrifugal |
22 | Starting |
| Electric |
23 | Ignition |
| ECU |
24 | Drive type |
| Double axles output, electric conversion between 4x2 and 4x4 |
25 | Oil supply way |
| EFI |
26 | Transmission |
| CVT,axle drive |
