Specifications
Prod Model: |
F50, F60, F80 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
48cc: |
2stroke |
60cc: |
2stroke |
80cc: |
2stroke |
New: |
Gasoline |
Air Cooled: |
Fuel Saving |
Top Level Quality: |
All Spare Parts Available |
Type: |
Motor |
Product Description
Specification:
Model No. F50, F60, F80
bicycle engine kit1. Engine type: Single cylinder, air-cooled, 2-stroke
2. Type of fuel mix: 16: 1/20: 1
3. Displacement: 48CC, 60CC, 70/80CC
4. Ignition: CDI Ignition
5. Transmission: Steel chain
5. Max. Power(kw/rpm): F50: 1.6/6000, F60: 2.5/6000, F80: 2.94/6500
6. Fuel consumption: 1.2 liter gasoline/100km
7. Maximum speed: 40km/h
8. Fuel tank: 2 L
9. Bearing: Needle bearing for connection rod
Net weight: 8kgs
Gross weight: 11kgs
Packing size: 42cmx42cmx17cm
Packing: 1 set/carton, with instruction manual in English or Spanish in each carton.

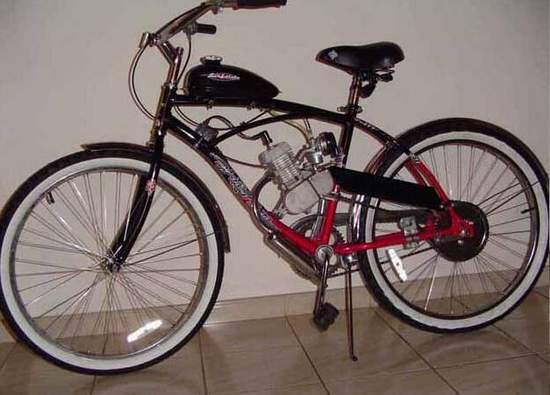

Everything is ready to be fixed on v frame bicycle. Please send your company profile and contact info to us for more detail and price.

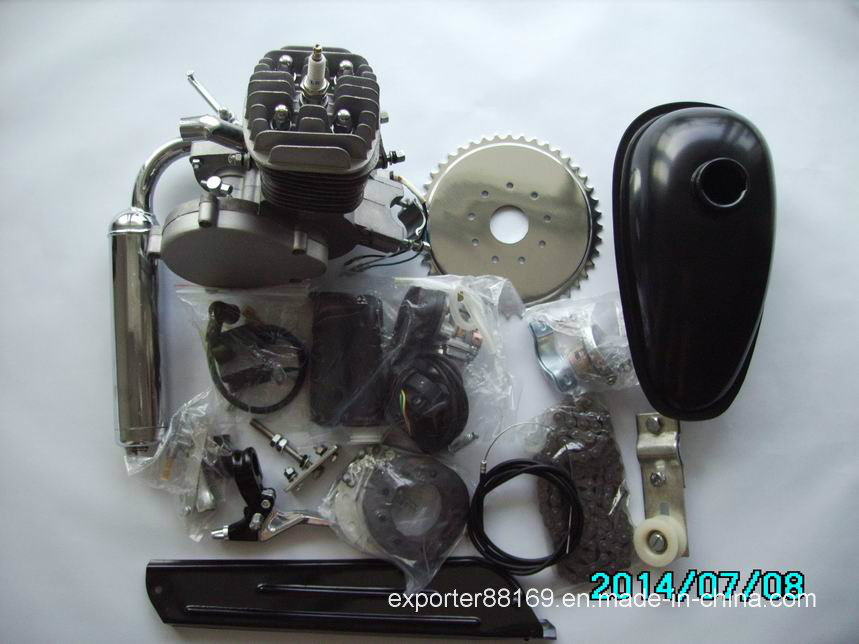

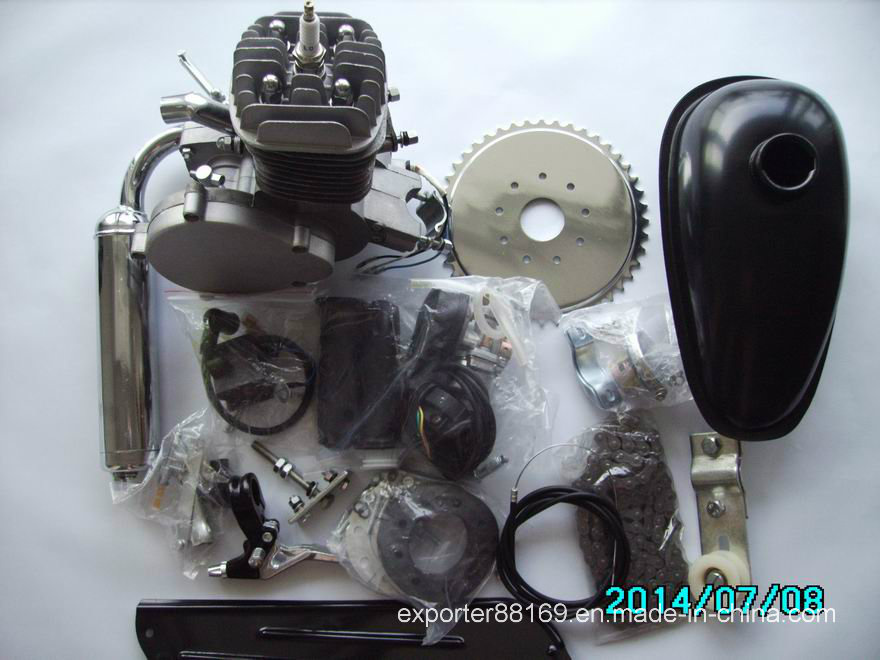

Item no. | Description | Quantity | Item no. | Description | Quantity |
1 | engine assy(silver colour) | 1 | 12 | Sprocket(9holes, 44teeth) | 1 |
2 | Black fuel tank | 1 | 13 | CDI ignitor | 1 |
3 | carburetor | 1 | 14 | Clamping rubber assy | 1 |
4 | Chromed exhaust muffler | 1 | 15 | Pulley assy with bearing | 1 |
5 | Clip, exhaust pipe | 1 | 16 | Strong lock nut | 1 |
6 | Aluminum valve, fuel tank | 1 | 17 | alloy push button clutch lever | 1 |
7 | 415 heavy duty chain | 1 | 18 | Clutch cable | 1 |
8 | Clip, chain cover | 1 | 19 | Accelerator cable | 1 |
9 | Chain protect cover | 1 | 20 | Screw tool | 1 |
10 | Fuel hose | 1 | 21 | Instruction manual(Eng. or spanish) | 1 |
11 | Throttle with kill switch | 1 | 22 | mounting adaptor(U bolt, nut) | 1 |
