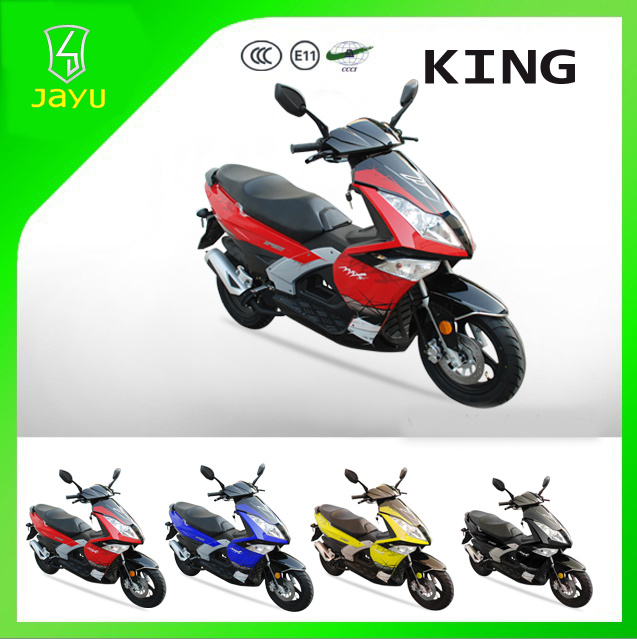

Taizhou New Model 150cc Scooter (King-150)
| Price: | US $ 540/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 26/Piece |
| Pay Type: | L/C,T/T |
Specifications
| Prod Model: | JY150T-40 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: | Blue, Yellow, Mixed Color |
| Engine: | 4 Stroke |
| Maximum Loading Capacity: | 75-120kg |
| Certification: | COC |
| Fuel Tank Capacity: | 5-8L |
| Folded: | Unfolded |
| Max Speed: | 80km |
| Displacement: | 150cc |
Product Description
150cc scooter 1.New stylish design/ design patent in China 2.Powerful 4 stroke/ air cooled engine 3.Fully automatic CVT transmission for easy driving 4.12inch aluminum wheels fit for big person 5.Big size scooter gives safety and comfort for high speed cruising 6 Maintenance-free battery 1,Selling points: 1,It can match multicolor and stickers 2,we can do 125C power, also do we can do 50CC and 150CC models. 3,Front and rear vacuum tire :durable,fasten, balanced ,and beautiful. the tire is wear-resisting and aiti-explosion. 4,Disc brake has high safety performance and has no noise 5,The motorcycle can install rear box and rear carrier| Scooter body parameter | ||
| MODEL | JY150T-40 (King-150) | JY125T-40/JY150T-40 (King-125/150) |
| Dimensions (mm): | 1990 x 690 x 1170 | 1990 x 690 x 1170 |
| Wheel base (mm): | 1445 | 1445 |
| Ground clearance (mm): | 115 | 115 |
| Dry weight / Load capacity: (kg) | 114 / 150 | 114 / 150 |
| Max.speed (km/h) : | 55 | 80 / 85 |
| Economic fuel consuption (1/100km/L) : | 2.1 | 2.8 / 2.9 |
| Exhaust system : | Mute exhaust | Mute exhaust |
| Fr brake / Rr brake : | disc/drum | disc/drum |
| Fr tyre / Rr tyre : | 120/70-12 | 120/70-12 |
| Fuel tank capacity (L) : | 5 | 5 |
| Battery | 12V 4AH | 12V 7AH / 12V 9AH |
| Ignition | CDI | CDI |
| Front suspension : | hydraulic | Spring shock |
| Rear suspension : | Spring shock absorber | Spring shock absorber |
| Scooter Engine parameter | ||
| Engine mode: | 139QMB | 152QMI / 157QMJ |
| Engine type | 1-cylinder,air-cooled, 4-stroke | 1-cylinder,air-cooled, 4-stroke |
| Displacement (cc) : | 49.5 | 124.6 / 149.6 |
| Cylinder Diameter / Pinston Stroke | 39 x 41.5 | 52.4 x 57.8 ; 57.4 x 57.8 |
| Transmission system : | Belt CVT | Belt CVT |
| Compression ratio | 10.3:1 | 10.3:1 |
| Start system : | kick / electric | kick / electric |
| Standard power(km/r/min): | 2.2/7500 | 5.2/7500 ; 6.4/6500 |
| Max. torque(n.m/r/min): | 3.5/4500 | 7.3/6000 ; 8.3/7500 |
| Packing information | ||
| G.W / N.W (KG)/Packing model | 129 / 114; | |
| Pack model | Full export carton package | |
| Packing size(mm) /20GP(CBU) | 1860 X 570 X 1180 / 26PCS | |
| Packing size(mm) /40HQ(SKD) | 1700 X 570 X 870 / 84PCS | |
