Specifications
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
|---|---|
| Engine Type: | 110cc, 4 Stroke, Air-Cooled, Semi-Automatic Clutc |
| Maximum Speed: | 60km/H |
| Transmission: | 4 Speeds, N1234 All up Gear |
| Carburetor: | Pz22 |
| Frame: | Single-Beam Frame |
| Swing Arm: | Steel Tri-Angle Rear Swing Arm |
| Certification: | CE |
| Displacement: | 51-125CC |
| Starting System: | Kick System |
| Engine: | 4 Stroke |
| Cylinder Quantity: | 1 |
| Fuel: | Gas / Diesel |
| Condition: | New |
Product Description

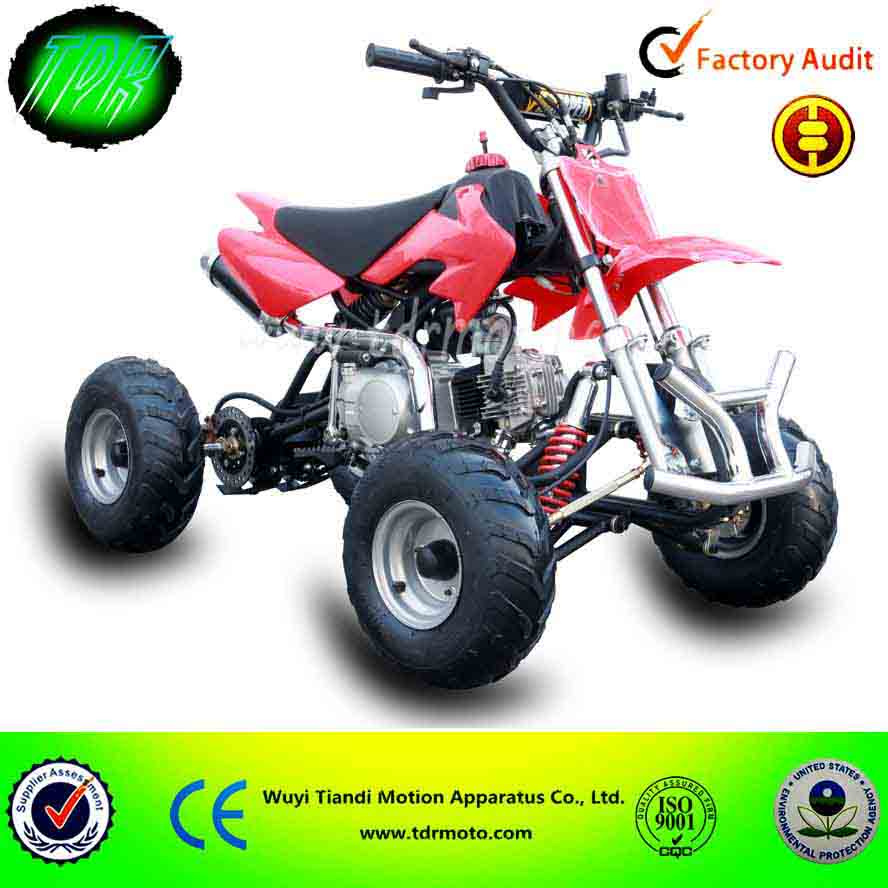

Conversion dirt bike, ATVBuying 1 set, you can own dirt bike, ATV and 3 wheels off road bike(2 front wheels + 1 rear wheel or 1 front wheel + 2 rear wheels).
| Engine | |
| Engine type | 110cc, 4 stroke, air-cooled, semi-automatic clutch |
| Maximum Speed | 60km/h |
| Transmission | 4 speeds, N1234 all up gear |
| Starter System | Kick Start |
| Carburetor | PZ22 |
| Chassis (pit bike) | |
| Frame | Single-beam frame |
| Swing arm | Steel tri-angle rear swing arm |
| Suspension system | Front Suspension: normal 525mm |
| Rear Suspension: 240mm, 1000LBS | |
| Brake system | Front Brake: Hydraulic disc brake system |
| Rear brake: drum brake | |
| Rim size | Front 1.40x10 rear 1.40x10 |
| Tire size | Guangli knobby front 2.50- 10, rear 2.50-10 |
| Chassis (adding conversional parts) | |
| Frame | Single-beam frame |
| Swing arm | Steel tri-angle rear swing arm |
| Suspension system | Front Suspension: normal 525mm |
| Rear Suspension: 240mm, 1000LBS | |
| Brake system | Front Brake: drum brake |
| Rear brake: Hydraulic disc brake system | |
| Tire size | Front 145/70-6 rear 145/70-6 |
| Dimensions | |
| Seat Height | 660mm |
| Wheel Base | 860mm |
| N.W/G.W | 76KG/86KG |
| Package 1 (pit bike) | 1140 x 360 x 600mm, Iron-frame, Carton box |
| Package 2 (conversional parts) | 820 x 720 x 320mm, Carton box |
| Container | |
| Qty/20Fcl | 60 sets |
| Qty/40HQ | 138 sets |
