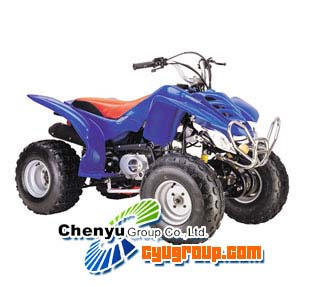

Single Cylinder ATV (CY110ST-3-110CC)

Specifications

Prod Model:	CY110ST-3-110CC

Product Description

ATV CY110ST-3-110CC
Engine: 110cc, 4-stroke, single cylinder, air cooled
Engine displacement (ml): 109
Bore×stroke (mm): 52×49.5
Max power (km/(r/min)): 6/8000
Max Torque (r/min): 7/6000
Minimum fuel consumption (g/kw. H): 367
Starting mode: Electric Start
Transmission mode: Axle
Brake type (front/Rear): Drum/drum
Brake distance (m/30km): 7
Shift speed type: Four, With reverse gear
Clutch mode: Automatic clutch
Minimum Turning Radius (mm): 3000
Climbing degree: 27
Seat Height (mm): 670
Minimum ground clearance (mm): 120
Top speed (km/h): 55
Tire dimension (front/rear): AT19×7-8/AT18×9.5-8
Cover material: PP
Product Size: 159×87×99cm
Carton Size: 148×86×76cm
N. W.: 130 kgs G. W.: 155 kgs
Container Loading: 27pcs/20"ft 63pcs/40"ft 63pcs/40"HQ
Available color: Red, Yellow, Blue, Green
