Specifications
Prod Model: |
M1M |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe |
Certification: |
CCC |
Engine Type: |
4-Stroke |
Displacement: |
>250CC |
Product Description
24HP
The basic one! Green(black) color

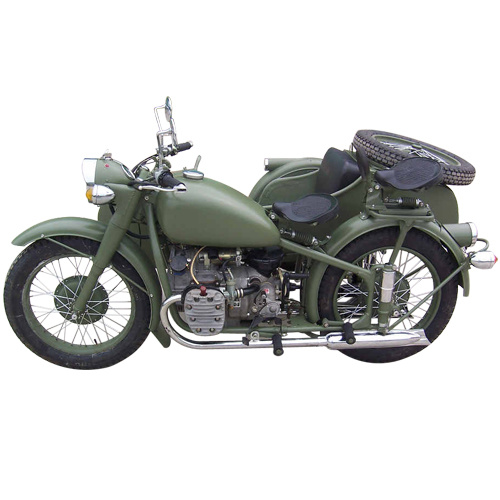

This picture shows a Matt-wide green sidecar
Standard configuration:
Right hand side
Cylindrical taillights
With the car, attached gifts:
Side gabe
Battery
Rearview mirror
Providing tools
English instructions
750 M 1M Motorcycle Main technical Data |
Dimensions ( length×width×height)(mm) | 2400×1650×1000 | Wheel base (mm) | 1420 | Tread (mm) | 1100 | Ground clearance (mm) | 135 | Column reach (mm) | 60 | Angle of column | 25°30′ | Dry weight (kg) | 320 | Max payload (kg) | 3 Persons + 100kg | Top speed (km/h) | 85 | Economic speed fuel consumption ( L 100km ) | 6 | Engine | CJ750D | Cylinder diameter × stroke (mm) | 78×78 | Total displacement | 746 | Compression Ratio | 5.85:1 | Max power and its corresponding speed (kW/r/min) | 17.7/4800 | Applicable gasoline | RQ-90 | Applicable oil | HQ10 ( for summer) HQ 6 ( for winter) | Starting mode | Kick & Electric | Type of carburetor | PZ28D | Capacity of gasoline tank (L) | 22 | Oil capacity of crankcase (L) | 2 | Oil capacity of gear box ( L) | 0.8 | Oil capacity of rear drive ( L) | 0.175 | Clutch | Mechanically controlled double-disc. Dry friction | Gear position No.1 Gear position No.2 Gear position No.3 Gear position No.4 | 3.6:1 2.29:1 1.71:1 1.3:1 | Mode of driving shaft | One universal joint | Speed redecing ratio of rear drive | 4.62:1 | Tyre size (inch) | 3.75-19 | Tyre pressure (kpa) | Front wheel 16kg /cm |
|
Standard: | packing: 2300*1600*1150(mm) | |
Productivity: | 1000 units/year | |
