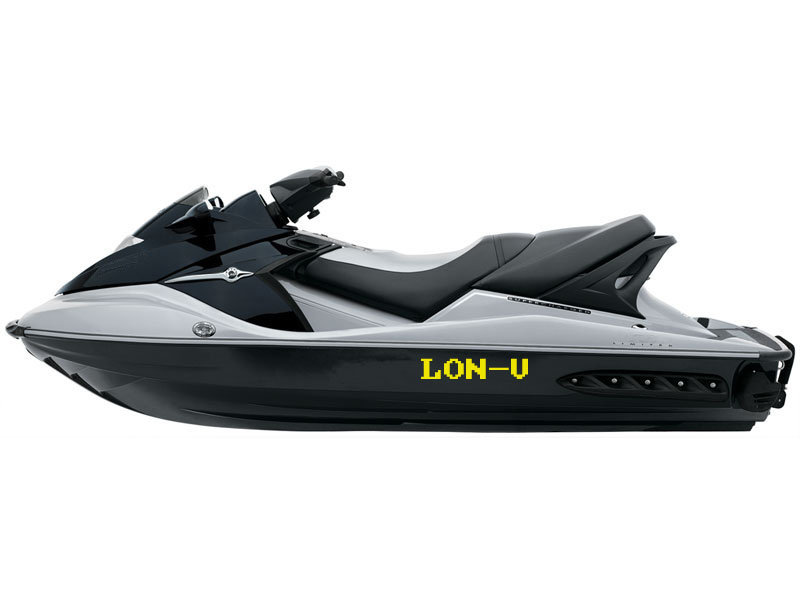

Sea Scooter (HS-JETSKI)

Specifications

Prod Model:	HS-JETSKI

Product Description

Maximum people on board: 2 persons
Engine: 760cc, two cylinders, water-cooling, 2 strokes
Displacement: 754cc/46.0cc
Compress ratio: 6.6: 1
Lubrication system: Variable oil injection

Oil capacity: 5.5L
Starting system: Electric start
Spark plug: 0.6 mm - 0.7mm/0.023" - 0.027"
Batteries: 12V, 19Ah
Propulsion system: Jet pump

Transmission: Direction drive from engine
Jet thrust nozzle angle: 23 + 23 degrees
Recommended fuel: Regular unleaded gasoline
Oil tank capacity: 5.5L (1.45 US gal, 1.21 Imp gal)
Dimensions (L x W x H): 2,930 x 1,150 x 1,020mm

Maximum load capacity: 160kg
Bore and stroke: 64.0mm x 68.0mm/2.520" x 2.677"
Maximum output: 66kW @ 6,350rpm/88HP @ 6,350rpm
Maximum fuel consumption: 38LPH/10GPH
Cruising range at full throttle: 1.2hrs

Trolling speed: 1,500-1,800 r/min
Ignition system: Ignition CDI
Spark plug gap: 0.7-0.8mm (0.028-0.031")
Charging system: Flywheel/magneto
Jet pump type: Axial flow, single stage

Impeller: Anticlockwise (from back)
Trim nozzle angle: -5, 0, 5, 10, 15 degrees
Fuel tank capacity: 60L (15.9 US gal, 13.2 IMP gal), reserve 10L (2.6 US gal, 2.2 IMP gal)
Max.Speed: 90km/h
N.W./G.W.: 268kg (591lbs)/300kg

Conveyance:
Qty/20' GP: 4pcs
Qty/40' GP: 8pcs
Qty/40' HQ: 12pcs
