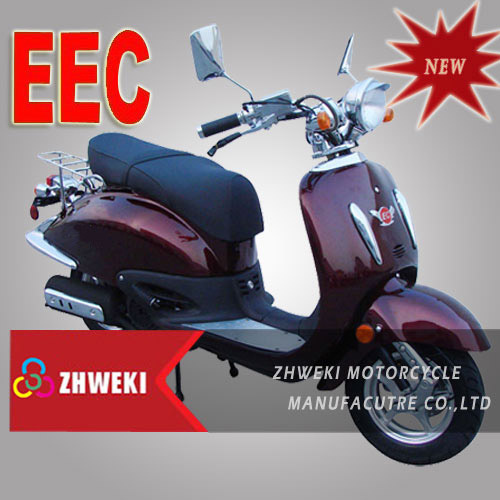

Home Taizhou Jiaojiang Zhiwei Motorbike Manufacture Co., Ltd. Scooters (ZW125T-11)
Specifications
| Prod Model: | ZW125T-11 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe |
| Fuel Tank Capacity: | 5-8L |
| Maximum Loading Capacity: | 75-120kg |
| Engine: | 4 Stroke |
| Displacement: | 51-125CC |
| Certification: | CE |
| Max Speed: | >50km/h |
Product Description
Scooters of stylish design, cool feeling, good quality, competitive price, enjoy your speed...| Model | ZW125T-27 |
| Dimension(L*W*H,mm) | 1885x850x1100 |
| Wheel base(mm) | 1250 |
| Min clearance(mm) | 100 |
| Net weight(kg) | 95 |
| Max load(kg)/Max speed(km/h) | 150 / 80 |
| Consumption(L/100km) | 2.8 |
| Oil tank capacity (L) | 6.5 |
| Brake(Fr./Rr.) | Disk / Drum |
| Tyre size(Fr./Rr.) | 3.50-10 |
| Wheel Hub(Fr./R.r) | Aluminium |
| Wheel atmosphere(Fr./Rr.)(KPa) | 190/220 |
| Front /Rear suspension | Hydraulic spring / spring |
| Engine model / Type | 152QMI/Single cylinder, four stroke ,air cooled |
| Displacement(ml) / bore x stroke | 124.6cc / 52.4 x 57.8 |
| Starter/ Ignition system | kick/electrical start / CDI |
| Max power(kw/ r/min) | 5.6/7500 |
| Max torque(N.m/ r/min) | 7.3/6000 |
| Container Loading Quantity | |
| 1¡¢Disassemble front panel,handle bar,rear carrier,front wheel etc. | 1800x570x870mm |
| 20"GP container: | 26pcs |
| 40"HQ container: | 78pcs |
| 2¡¢Disassemble front wheel | 1900x570x1120mm |
| 20"GP container: | 24pcs |
| 40"HQ container: | 52pcs |
