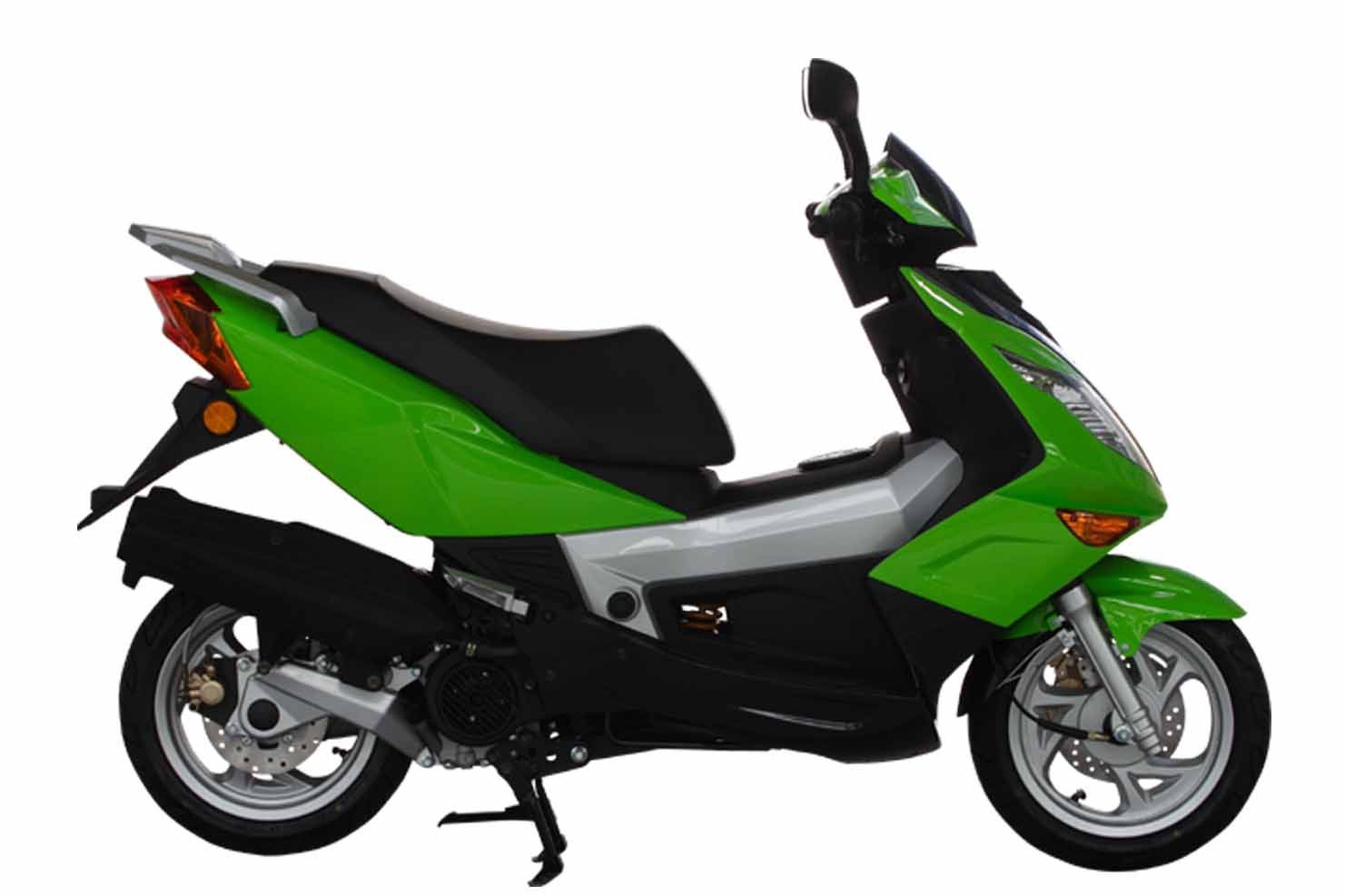

Scooter (PS125 Racing)

Specifications

Prod Model:	PS125 Racing

Product Description

Air cooled plus oil cooled engine, front and rear disc brakes, sport muffle, rear center shock absorber.

Dimensions and Weight:
Length x Width x Height: 1, 890 x 730 x 1, 160mm
Wheelbase: 1, 350mm
Seat Height: 820mm
Ground Clearance: 125mm
Fuel Capacity: 7.5 Liters
Dry Weight: 138 kg

Engine
Engine Type: Forced wind Cooled+ oil cooled, 4 Stroke Single Cylinder
Engine Displacement: 124cm³
Bore & Stroke: 52.4x57.8mm
Compression Ratio: 9.2: 1
Carburation: DENI PD24J
Max. Power Output: 6.0KW at 7, 500 rpm
Max. Torque: 8.0Nm at 6, 500 rpm
Ignition: C. D. I
Starter: Kick and Electric

Transmission
Gearbox: Automatic
Final Drive: Shaft drive

Wheels, Suspension and Brakes
Wheels Front: Aluminums rim, 3.0x13
Wheels Rear: Aluminums rim, 3.5x13
Tires Front: Cheng Shin 120/60-13 C6104-1
Tires Rear: Cheng Shin 130/60-13 C6104-27
Suspension Front: Hydraulic Spring
Suspension Rear: Hydraulic Spring
Brakes Front: Disc brake
Brakes Rear: Disc brake
Battery Shido YTX9-BS
