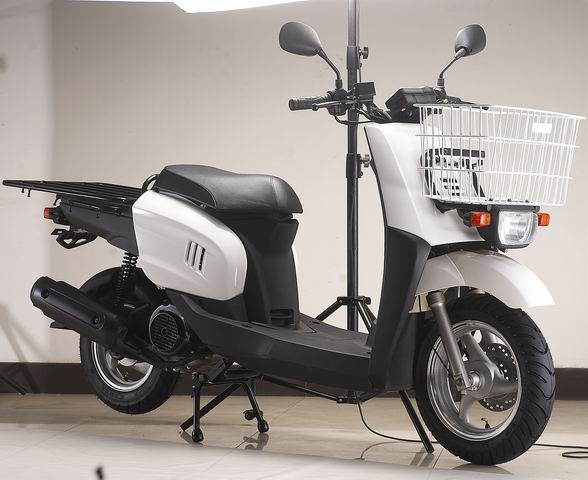

Home Zhejiang Hongzhou Motorcycle Co., Ltd. Scooter Hl50qt-46* (h2)
Specifications
| Prod Model: | HL50QT-46 |
|---|---|
| Markets: | South America,Southeast Asia,Africa,Western Europe |
| Engine: | 2 Stroke |
| Certification: | EEC |
| Max Speed: | 21-50km/h |
| Fuel Tank Capacity: | 7L |
| Maximum Loading Capacity: | 150 |
| Displacement: | 50cc |
Product Description
Dimension (mm): 1882*683*1011Max load (kg): 150
Brake (Fr. / Rr): Disk / Drum
Wheel hub (Fr. / Rr. ): Aluminium wheel
Engine type: 1P38QMB, Single cylinder, 4Stroke, air cooled
Starting: Electric / Kick
| Model Name | H-2 (50cc) | H-2 (125cc) | H-2(150cc) |
| Engine Size(cc) | 1P38QMB | 152QMI | 157QMJ) |
| Engine Type | single cylinder, 4stroke,air cooled | single cylinder, 4stroke,air cooled | single cylinder, 4stroke,water-cooled |
| New Weight(kg) | 115 | 115 | 115 |
| Dimensions(mm) | 1882×683×1011 mm | 1882×683×1011 mm | 1882×683×1011 mm |
| Wheelbase | 1352mm | 1352mm | 1352mm |
| Tire Size (inch) | F: 110/70-12; R: 3.5-10 | F: 110/70-12; R: 3.5-10 | F: 110/70-12; R: 3.5-10 |
| Fuel Capacity(L) | 7 | 7 | 7 |
| Max loading weight(kg) | 150 | 150 | 150 |
| Max power(kw/r/min) | 2.8 kw/7500r/min | 5.6 kw/7500r/min | 7.0kw/7500r/min |
| Max torque(n.m/r/min) | 7.6 N.m/5000 r/min | 7.6 N.m/6000 r/min | 9.0N.m/5500r/min |
| Brake Mode(F/R) | F: Disk; R: Drum | F: Disk; R: Drum | F: Disk; R: Drum |
| Starting System | Electric / Kick | Electric / Kick | Electric / Kick |
