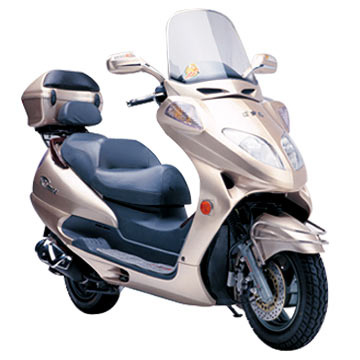

Scooter, 150cc Moped (SR-MS15)

Specifications

Prod Model:	SR-MS15

Product Description

150cc Moped scooter
Model NO.: SR-MS15

Engine: single-cylinder, 4-stroke, air-cooled,
Bore Stroke: 57. 5x57. 8mm
Dispalcement(cc): 249. 60cc
Compression Ratio: 9. 2: 1
Climbing Capacity: 10 degree
Braking distance: 7m(30km/h)
Ecnomic oil consumption: 2. 9L/100km(on paved ground, under ecnomic speed)
Max Speed(km/h): 85km/h
Type of Lubricating: Oil
Four stroke engine: Oil SAE10W-30(SIGMA)
Type of Fuel Oil: RQ-90
"Volume of Engine Oil In Crankcase": 0.9L
Capacity of Fuel tank: 12L
Max Load: 140kg
Net Weight: 133kg
Wheel Base: 1450mm
Product size: 2070*735*1410mm
Max power: 7.0kw/7500rpm
Max Torque: 8.5Nm/4000rpm
Type of ignition: CDI
Spark Plug: C7HSA(NGK), U22FS-U(ND)
Type of Lubrication: Pressing & splashing
Clutch: Dry, automatic, centrifugal
Type of gearshift: Automatic, belt gear, unbroken
Start: Electric and Kick
Front Tire: 110/90-12, 196KPa
Rear Tire: 130/70-12, 221KPa
Battery: 12V 7Ah
Head light: 12V 35W
Rear Light/Braking Light: 12V 8W/20W
"Front and Rear Direction light": 12V 10Wx4
Number Plate light: 12V 5W
"Indicating Lamps on Meter Panel/overtaking light": 12V, 1.7Wx3
Fuse: 7A
Horn: 12V 3A 105dB(A)
Container: 16pcs/20FCL; 34pcs/40FCL; 34pcs/40HQ;
Color:red/blue/black/dark green
