Specifications
Prod Model: |
ZF100 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Starting System: |
Kick Start and Electric Start |
Engine: |
4 Stroke |
Condition: |
New |
Fuel: |
Gas / Diesel |
Cylinder Quantity: |
1 |
Displacement: |
100cc-150cc |
Product Description

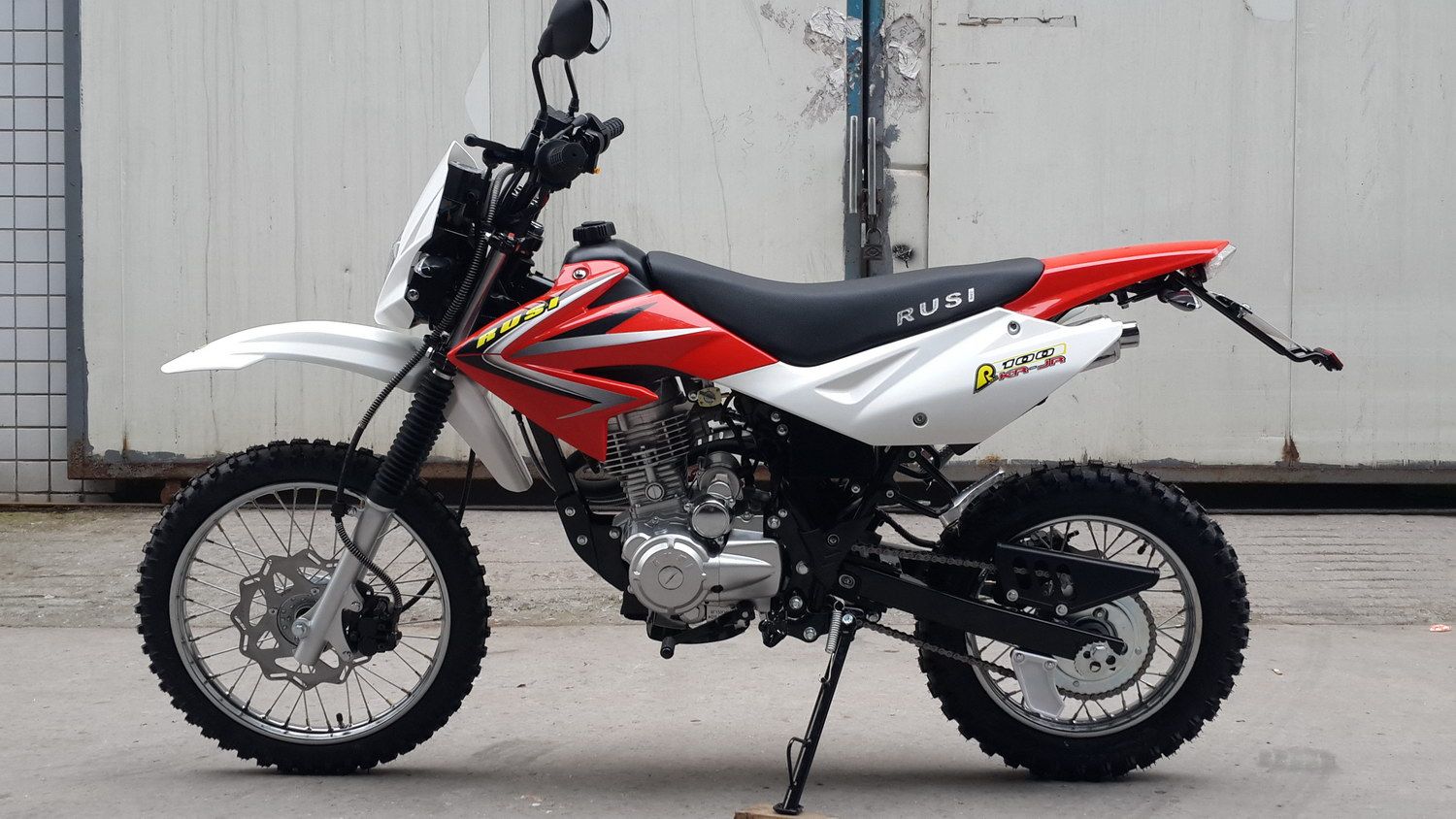

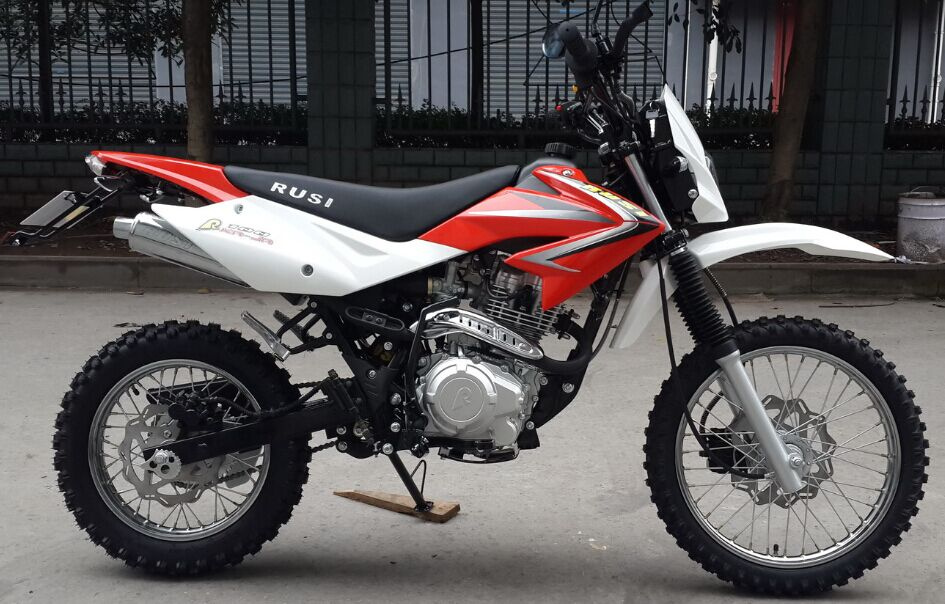

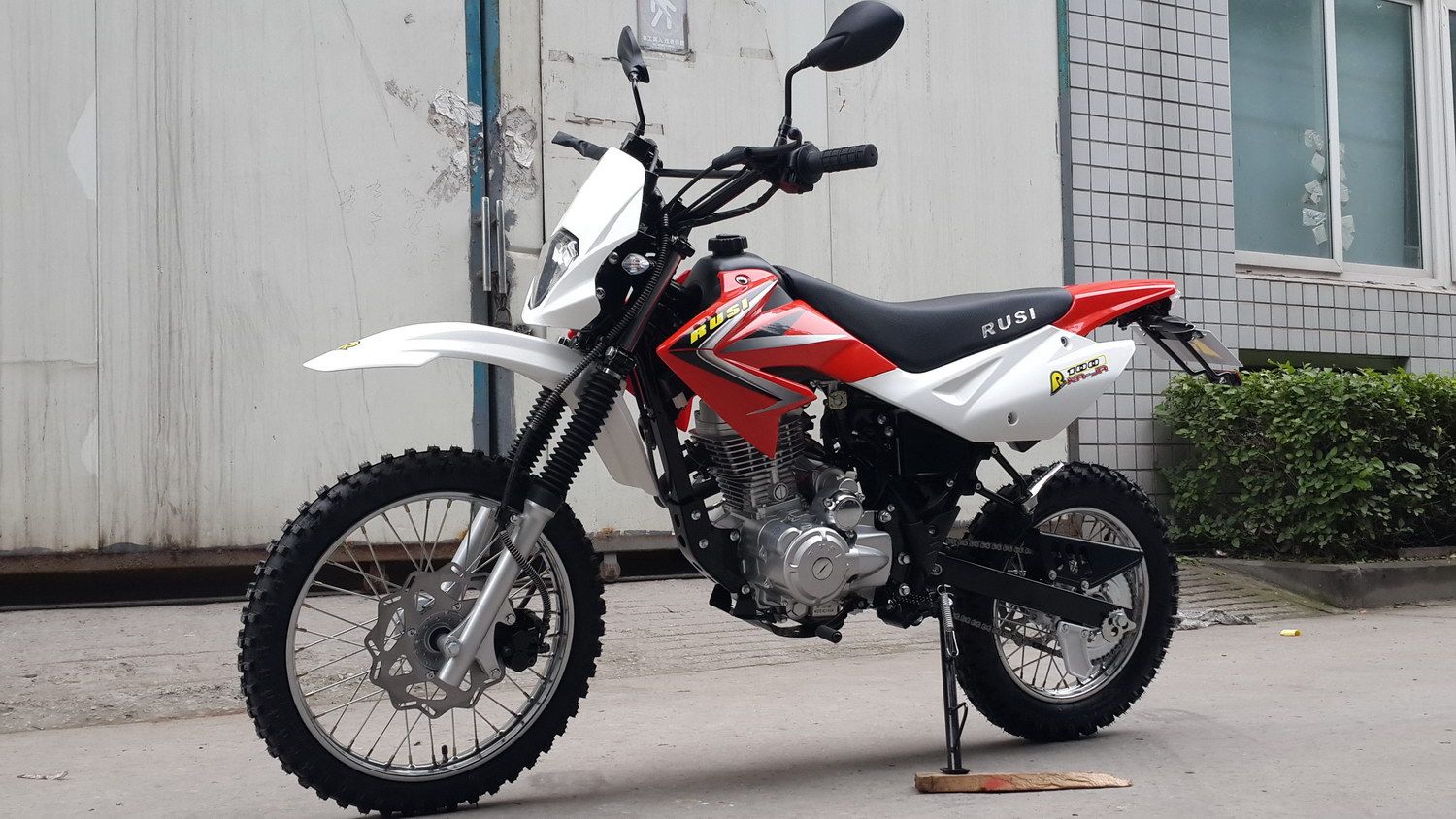

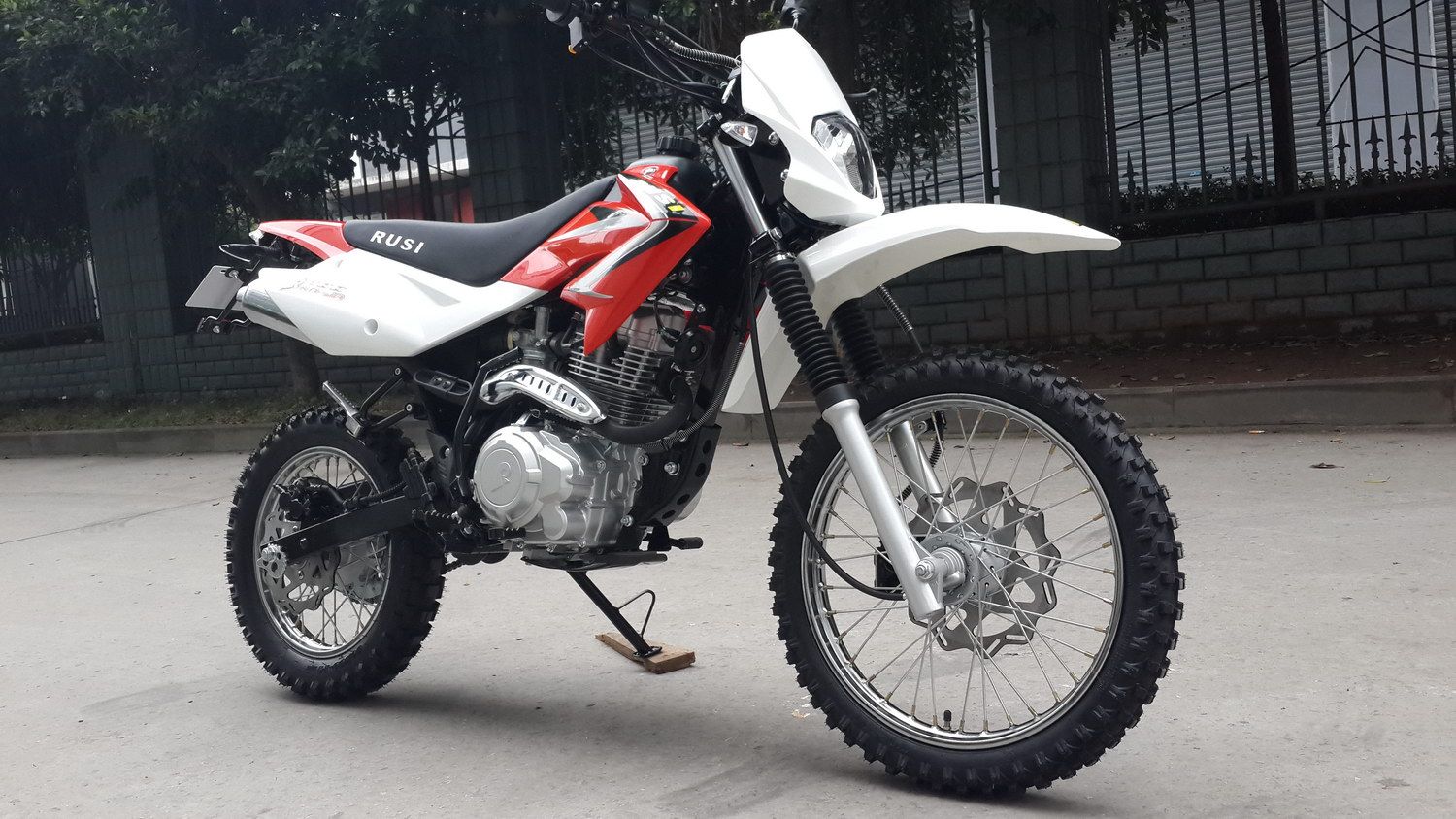

CG100CC,4 stroke air-cooled engine,spoke wheel,front and rear disc brake,new stylish headlight
| | standand | optional | optional |
Specification | | 100cc | 125cc | 150cc |
Vehicle Type | | Medium size Off-road |
Engine Type | | One cylinder,4 stroke,air-cooled |
Engine Model | | LC150FMG | LC157FMI | LC162FMJ |
Cylinder Arrangement | | Single Cylinder |
Bore×Stroke (mm) | ×(mm) | 50×49.5 | 56.5×49.5 | 62×49.5 |
Piston Displacement (cc) | (cc) | 97.2 | 124 | 149 |
Compression Ratio | | 9.0:1 | 9.0:2 | 9.0:3 |
Maximum Power (kw/r/min) | (kw/r/min) | 5.5/8500 | 7.5/8500 | 8.5/8500 |
Maximum Torque (N.m./rpm) | (N.m./rpm) | 6.5/8000 | 8.5/7500 | 10/7500 |
Transmission System | | Chain drive |
Ignition Type | | C.D.I |
Starter System | | Electric/Kick |
Transmission | | 5 Speed, Return |
L×W×H (mm) | ××(mm) | 1970×790×920 |
Wheel Base (mm) | (mm) | 1270 |
Seat Height (mm) | (mm) | 820 |
Ground Clearance (mm) | (mm) | 270 |
Dry Weight (kg) | (kg) | 150 |
Brake (Front/Rear) | (/) | Disk/Disk |
Tyre, Front | | 70/100-19 or 70/100-17 |
Tyre, Rear | | 90/100-16 or 90/100-14 |
Fuel Tank Capacity (L) | (L) | 5.5 |
Engine Oil Capacity (L) | (L) | 1.1 |
Max. Load Capacity (kg) | (kg) | 150 |
Max. Speed(km) | (km) | 80 | 85 | 90 |
Battery | | 12V6.5Ah |
QTY in 40'HQ | 40' | 180 PCs /CKD,108 PCs/CBU |
