Home Luoyang Lirui Bearing Co., Ltd. Rolling Bearing, Kd040cpo, Deep Groove Ball Bearing, Scooter Parts

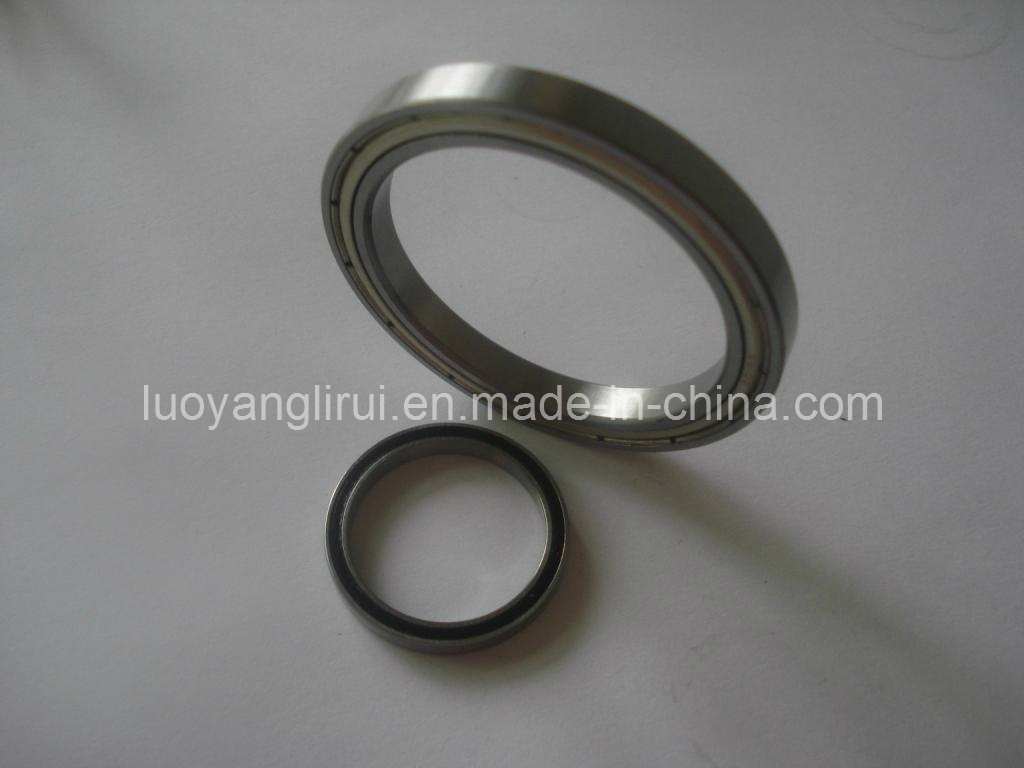

Rolling Bearing, Kd040cpo, Deep Groove Ball Bearing, Scooter Parts
| Price: | US $ 0.1/Piece |
|---|---|
| Trade Terms: | FOB,CIP,FCA |
| Min Order: | 1/Piece |
| Pay Type: | T/T,Paypal |
Specifications
| Prod Model: | KD040CPO |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inner Diameter: | 101.6 Mm |
| Outer Diameter: | 120.65 Mm |
| Width: | 12.7 Mm |
| Weight: | 0.204 Kg |
| Rolling Body: | Ball Bearings |
| The Number Of Rows: | Single |
| Outer Dimension: | Medium and Large(',120-190mm) |
| Load Direction: | Radial Bearing |
| Material: | Bearing Steel |
| Separated: | Unseparated |
Product Description
Luoyang lirui bearing Co., Ltd is a professional company engaged in the production of bearings, such as series of thin-wall deep groove ball bearing, angular contact bearing, four-point contact ball bearing.There are three kinds of structure of Thin-wall bearing, such as ARO, CPO, XPO. Which are short for thin-wall angular contact series, thin-walled deep groove ball series, thin-wall four-point contact ball series.
We also specialize in the production of American KAYDON substitute precision thin section bearing, and Germany substitute thin section bearing, imported substitute bearing, and Japan NTN substitute precision thin section bearing.
Deep groove ball bearings can withstand radial load and two-way axial load, making it very suitable for high speed rotation and requiring low noise, low vibration.
Main Application:
Car: Rear wheel, transmission, electrical equipment parts
Electric: General motor, household electrical appliances
Other: Instrumentation, internal combustion engines, construction machinery, railway vehicle, loading and unloading handling machinery, agricultural machinery, all kinds of industrial machinery.
Packaging & Delivery
Packaging details:
1, wooden boxes
2. Be oiled and wrapped with water-proof belt
3. Wooden pallets
4. According to customers requirement
Delivery Detail:
2-5 days for stock bearing, 40-60 days for future goods
Specifications
1. Reasonable price
2. Various types
3. Quick delivery
4. OEM service
Product Specification:
1. Series: Deep groove ball bearings
2. Cage: Machined brass cage,
3. Material: GCr15/GCr15SiMn
4. Precision: P0
5. Quality: IS09001: 2000
6. Packing: Standard export packing & industry packing & according to clients' requirement.
7. Brand: LRZ
8. Origin city: Luoyang of China
9. MOQ: 2 PCS
10. Delivery term: FOB Shanghai port & CIF
11. Others OEM orders available
12. Main type 618 619 160 series
| Type | Major dimensions | weight | Rated loading | Limiting speed | Equivalent | ||||||||
| d | D | B | radial | thrust | |||||||||
| static | dynamic | static | dynamic | SILVERTHIN | |||||||||
| In | Mm | In | Mm | In | Mm | kg | Co(N) | Cr(N) | Co(N) | Cr(N) | (RMP) | ||
| KD040CPO | 4 | 101.6 | 5 | 127 | 0.5 | 12.7 | 0.354 | 15790 | 9210 | 45640 | 26780 | 4440 | SD040CPO |
| KD042CPO | 4.25 | 107.95 | 5.25 | 133.35 | 0.5 | 12.7 | 0.376 | 16680 | 10720 | 48170 | 31090 | 4210 | SD042CPO |
| KD045CPO | 4.5 | 114.3 | 5.5 | 139.7 | 0.5 | 12.7 | 0.399 | 17570 | 10940 | 50710 | 31760 | 4000 | SD045CPO |
| KD047CPO | 4.75 | 120.65 | 5.75 | 146.05 | 0.5 | 12.7 | 0.426 | 18460 | 11170 | 53250 | 32380 | 3810 | SD047CPO |
| KD050CPO | 5 | 127 | 6 | 152.4 | 0.5 | 12.7 | 0.454 | 19310 | 11340 | 55780 | 32920 | 3640 | SD050CPO |
| KD055CPO | 5.5 | 139.7 | 6.5 | 165.1 | 0.5 | 12.7 | 0.481 | 21080 | 11740 | 60850 | 34070 | 3300 | SD055CPO |
| KD060CPO | 6 | 152.4 | 7 | 177.8 | 0.5 | 12.7 | 0.526 | 22820 | 12100 | 65920 | 35050 | 3080 | SD060CPO |
| KD065CPO | 6.5 | 165.1 | 7.5 | 190.5 | 0.5 | 12.7 | 0.553 | 24600 | 12370 | 70990 | 35900 | 2860 | SD065CPO |
| KD070CPO | 7 | 177.8 | 7.75 | 196.85 | 0.5 | 12.7 | 0.331 | 19220 | 7650 | 55470 | 22150 | 2710 | SD070CPO |
| KD075CPO | 7.5 | 190.5 | 8.5 | 215.9 | 0.5 | 12.7 | 0.64 | 28110 | 13080 | 81140 | 37900 | 2500 | SD075CPO |
| KD080CPO | 8 | 203.2 | 9 | 228.6 | 0.5 | 12.7 | 0.694 | 29850 | 13300 | 86210 | 38570 | 2350 | SD080CPO |
| KD090CPO | 9 | 228.6 | 10 | 254 | 0.5 | 12.7 | 0.78 | 33360 | 13970 | 96350 | 40030 | 2110 | SD090CPO |
| KD100CPO | 10 | 254 | 11 | 279.4 | 0.5 | 12.7 | 0.853 | 36880 | 14410 | 106.49 | 41770 | 1900 | SD100CPO |
| KD110CPO | 11 | 279.4 | 12 | 304.8 | 0.5 | 12.7 | 0.934 | 40390 | 14720 | 116630 | 42700 | 1740 | SD110CPO |
| KD120CPO | 12 | 304.8 | 13 | 330.2 | 0.5 | 12.7 | 1.021 | 43900 | 15260 | 126770 | 44260 | 1600 | SD120CPO |
| KD140CPO | 14 | 355.6 | 15 | 381 | 0.5 | 12.7 | 1.238 | 50930 | 15930 | 147060 | 45990 | 1380 | SD140CPO |
| KD160CPO | 16 | 406.4 | 17 | 431.8 | 0.5 | 12.7 | 1.406 | 57960 | 17150 | 167340 | 49060 | 1210 | SD160CPO |
| KD180CPO | 18 | 457.2 | 19 | 482.6 | 0.5 | 12.7 | 1.579 | 64900 | 18300 | 187630 | 50670 | 1080 | SD180CPO |
| KD200CPO | 20 | 508 | 21 | 533.4 | 0.5 | 12.7 | 1.746 | 72020 | 19380 | 207910 | 53020 | 980 | SD200CPO |
| KD250CPO | 25 | 635 | 26 | 660.4 | 0.5 | 12.7 | 2.173 | 89590 | 21830 | 258620 | 60230 | 780 | SD250CPO |
| KD300CPO | 30 | 762 | 31 | 787.4 | 0.5 | 12.7 | 2.599 | 107160 | 24010 | 309330 | 67880 | 660 | SD300CPO |
