Home Jinhua Bojo Technology Co., Ltd. Racing Quad Bike (MC-380-250CC)

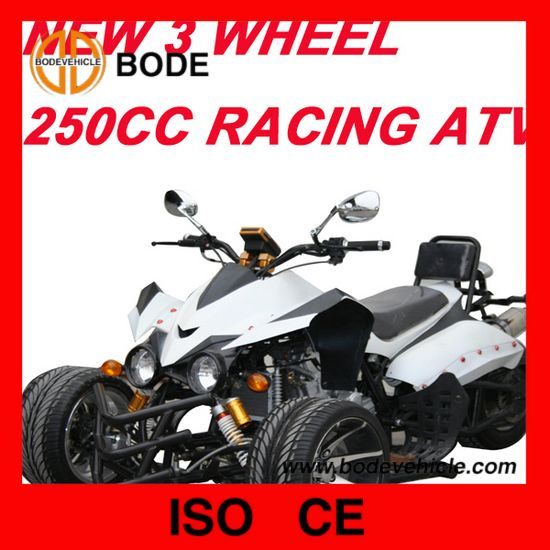

Racing Quad Bike (MC-380-250CC)
| Price: | Negotiable/Piece |
|---|---|
| Min Order: | 1 /Piece |
| Pay Type: | T/T,Western Union |
Specifications
| Prod Model: | MC-380-250CC |
|---|
Product Description
Type: Single cylinder, water-cooling, 4-strokeTransmission: 4 gears with one reverse gear, manual Clutch
Ignition mode: CDI
Compression propor 10.5: 1
Power: 11.6KW/7, 500rpm
Max. Torque: 15.9N. M/6, 000rpm
Displacement: 243ml
Start mode: Electric
Transmission mode: Chain
Min. Ground clearance 100mm
Max. Speed: >80km/h
Power source: 12V, 9AH
Fuel tank capacity: 4L
Chassis
Front wheels: 235/30-R12 Rear wheels: 250/40-R10
Break type(F/R): Disc/disc
Front hanging double arm-swing
Rear hanging: Integral
Dimensions
Product dimensions: 2140x1210x920mm
Carton dimensions: 1965x1085x730mm
Wheelbase: 1550mm
Height of seats: 680mm
Dry weight: 162kg 166kg
Load capacity: 240KG
Climbing degree: >20
Conveyance: Qty/20' GP: 15 Qty/40' GP: 36 Qty/40' HQ: 36
