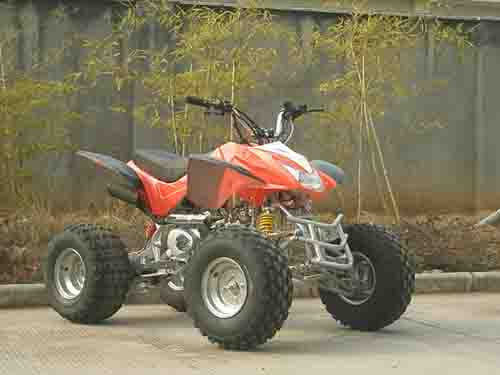

Quad (JZ-ATV-110)

Specifications

Product Description

1) Vehicle dimensions: L1120 x H730 x H560mm
2) Wheel base: 695mm
3) Petrol tank capacity: 3. 4L
4) Engine: 48cc, 4stroke, single cylinder, air cooled
5) Transmission: Fully auto clutch or 4 speed semi auto adjustable
6) Max power (kw/rpm): (3. 54Hp)2. 6Kw/8500rpm aprox
7) Max torque (Nm/rpm): 3. 0Nm/7500rpm approx
8) Top speed (km/hr): 30km/hr approx
9) Starting: 12V, C. D. I., electric start
10) Lubrication: Wet sump
11) Brake: (Rt) drum

Packing:
Carton dimensions: 112. 5 x 67. 5 x 66cm
N. W.: 71kg
G. W.: 95kg

Conveyance:
Qty/20'FCL: 45pcs
Qty/40'HQ: 108pcs
