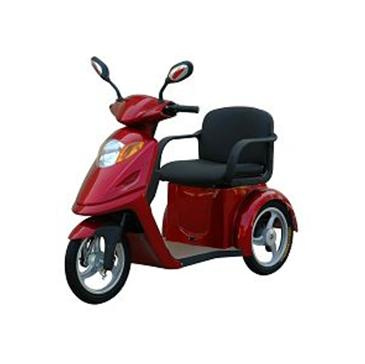

Progam Controll Mobility Scooter (M71-303401)

Specifications

Prod Model:	M71-303401
Climbing Capability:	15??
Load Capacity:	100-200kg
Accessories:	Dust Cover

Product Description

This progammable controller 3-wheel mobility scooter makes it more suitable for individual driving need. It is a very safy and ecnomic item for the elderly people.

Feature:
* Easy operation, fashionable design
* Foldable seat, can be moved fore-and-aft, 180 rotated armrest
* 150kg user weight capacity
* Comfortable and deluxe seating
* Electric-magnetic braking system and automatic power off
* Electric transaxle drive with rear wheel drive provides optimum maneuverability

Specification:
* Overall dimension(including anti-tip wheel): 1480*680*1200mm/58.27*26.77*47.24"
* Overall carton dimension(including anti-tip wheel): 1510*690*790mm/59.44*27.16*31.10"
* Net weight(with batteries): 75kg
* Max forward speed: 15km/h(adjustable)
* Max backward speed: 6km/h(adjustable)
* Max climbing grade: 20degree
* Turning radius(min): 1200mm/47.24"
* Load capacity: 150kg
* Ground Clearance: 150mm/5.91"
* Motor: 400W
* Braking system: Electromagnetic braking system
* Controller: DYNAMIC
* Battery type: 12V24AH× 2PCS
* Battery weight: 14kg× 2PCS
* Battery charger: 110VAC-230VAC(adjustable)/24VDC-4A
* Charging time: 11-12h
* Running distance per charge: 50km(subject to the load, terrain conditions)
* Tires: Air charging
* Rear wheel size: 406*64mm/16*2.5"
* Front wheel size: 406*64mm/16*2.5"
* Anti-tip wheel size: 5.2*48mm/0.2*1.89"
* Wheeli hub: Aluminum alloy
* Seat material: Black vinyl

Qfy/20''FCL: 33PCS
Qfy/40''FCL: 66PCS
Qfy/40''HQ: 72PCS
Item# M71-303401
