Specifications
Prod Model: |
JH5313 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Power: |
13HP |
Gears: |
5 Forward&2 Reverse |
Chute Rotating Angle: |
190 Degree |
Cylinders: |
1 |
Engine: |
4 Stroke |
Product Description
Certificates: CE, EPA, CARB, EURO-2
Power supplier: 13HP(7.8Kw)
--Displacement: 375CC
--Engine type: G390, 4 stroke, OHV, air-forced cooling, single-cylinder, gasoline
--Fuel Capacity: 6.5 L
--Oil tank capacity: 1.1L
--Operational Capacity per tankful (approx. ): 3.5 hrs
--Max working load: 2200lbs. /minute. (theoretical)
Max. Throwing distance: 10-15m (theoretical)
Max. Working width: 28"(71cm)
Max. Working thickness: 22"(56cm)
Chute rotating angle: 190 Degree
Type of transmission: Friction disc
Stage gears: 4 Forward, and 2 Reverse
Type of wheels: 15X5.5-6 inch tyre/ caterpillar
Starting method: Recoil & Electrical starter
N. W/G. W: 108/120 kg
Packing Dimension: 115 x 76 x 78 (cm).
Conveyance: 30PCS/20'GP; 90PCS/40'GP.
Item |

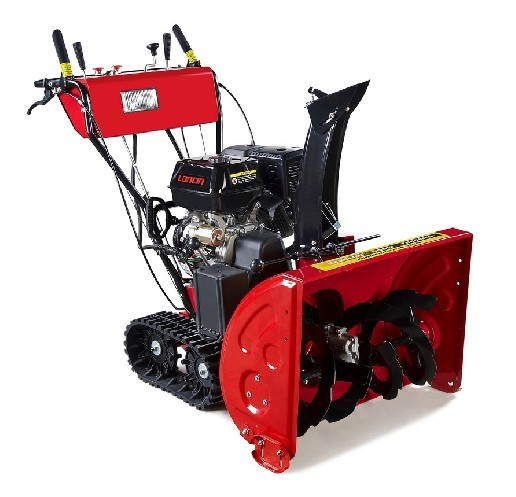

Snow Blower |
Model |
JH5313 |
Certificates |
CE, EPA, CARB, EURO-2
|
Power supplier |
13HP
|
Displacement |
375CC
|
Engine type |
4 stroke, OHV, air-forced cooling, single-cylinder, gasoline
|
Fuel Capacity |
6.5 L (1.7 US gallon)
|
Oil tank capacity |
1.1L
|
--Operational Capacity per tankful (approx. ) |
3.5 hrs
|
Max working load |
2200lbs. /minute. (theoretical)
|
Max. Throwing distance |
12 m (theoretical)
|
Max. Working width |
28" (71cm)
|
Max. Working thickness |
22" (56cm)
|
Chute rotating angle |
190 Degree
|
Type of transmission |
Friction disc
|
Stage gears |
4 Forward, and 2 Reverse
|
Type of wheels |
15X5.5-6 inch tyre/ caterpillar
|
Starting method |
Recoil & Electrical starter
|
N. W/G. W |
125/135 kg
|
Conveyance |
30PCS/20' GP; 90PCS/40' GP |
