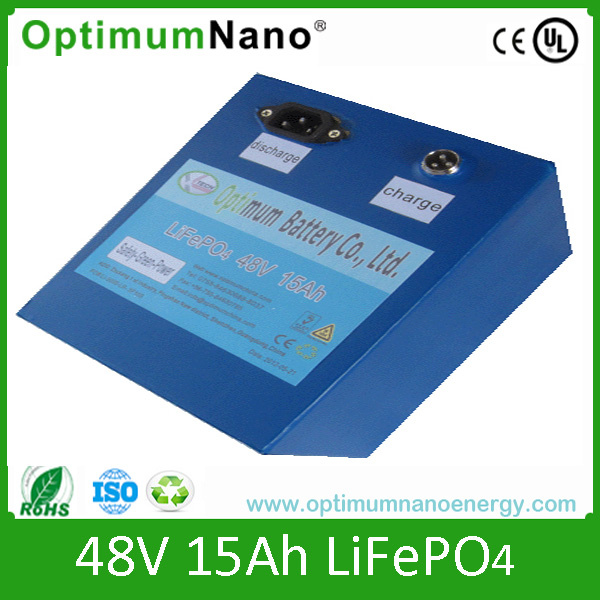

Optimumnano 48V15ah LiFePO4 Battery for Electric Vehicles

Specifications

Prod Model:	OPT-048015
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Battery Cell Type:	Cylindrical Lithium Iron Phosphate Battery
OEM/ODM:	Custom-Made Special Dimension (Even Provide Brand
Self Discharge Rate:	≤3% Monthly
Warranty Time:	2 Years
Certifications:	CE,UL,RoHS,Nqa,IEC,BV,SGS,Rbrc
Certification:	IEC,SGS
Rated Capacity:	15ah

Product Description

LiFePO4 battery developed and produced by Optimum use the internationlly mature cylindrical structure design, maximizing the performance with best battery structure, formular and material. Meanwhile, the conformity and dependence of cell are highly improved by improving production procedure and updated equipment.

Now Optimumnano mainly produce 32650/32750 LiFePO4 battery, striving to maximize the power and density with identical module and dimension.

7 edges in performance of Optimum LiFePO4 battery:

1. High dimension ratio power: 32750-7Ah weight ratio power is 135Wh/kg, dimension ratio power is 370Wh/L; 32650-5Ah weight ratio power is 110Wh/kg, dimension of ratio power is 370Wh/L.
2. Long cycle and service term: 1C charge/discharge, 100% discharge depth, 80% capacity after 2000 charge/discharge cycles. Sevice term above 8 years on ev;
3. Good safey performance: No explosion and burning after safety testing like overcharging/discharging, short-circuit, dropping, squeezing, heating, penetrating, etc.
4. Good performance at high or low temperature: 105% capacity can be released when charge/discharge at 55 oC; 80% capacity can be released when charge/discharge at -15oC...
5. Small self-discharge current: Rest for one month with half soc, self-discharge current less than 5%;
6. High efficiency of charging: Capacity efficiency ( ampere hour efficiency) usually 100%, 100Ah for charging and 100Ah for dicharging;
7. Good performance of heavy current: The capacity stays the same with 100% capacity when the battery discharge at different rate at 0.1C-5C.

Features of Optimumnano LiFePO4 battery pack:

1. Pack assembly technique: Use the most mature cylindrical structure design 32650 LiFePO4 battery, making use of assembly technique developed by us to form products of different modules required by customers which are against dust, water, vibration and good in conductivity and heat raleasing. At present, the maximum capacity of module we've produced so far is 900Ah while maximum voltage of pack is 600V;
2. Battery management technique: Self-developed BMS, automatic testing voltage, temperature, current, insulation level and SOC, use advantage lossless balancing function and GPRS wireless data transmission function.
3. Ensuring of best performance of each cell;
4. Seamless exchange: We can produce packs that are the same with lead-acid battery in voltage, capacity and dimension, without changing the mould.
5. Lighter, smaller and stronger: Optimumnano LiFePO4 battery pack system is featured with lighter weight, smaller dimension and stronger power with service term above 10 years.

Quality features of optimumnano LiFePO4 battery pack:

In optimumnano, each cell and pack is produced with the principle of "conformity in 6 aspects and 3 inspections in 3 stages", thus the high stability and reliability can be guaranteed. "Conformity in 6 aspects" is a principal developed by optimumnano's engineers in production and inspection process. The application of ensures conformity of packs and improves service term of pack obviously. And "3 inspections in 3 stages" refers to inspections on battery assembly, paralleled modules and finished packs.


Remarks:
1) MOQ: 1 pcs
The quotation is include BMS and packing, but not the charger
2) Payment: T/T 100% for sample, T/T 30% in advance, 70% before sending the goods for the order.
3) Order Lead time: 5-6 weeks working days for order upon receipt of 30% deposit
4) Sample lead time: Within 2-3 weeks
5) Delivery: FOB Shenzhen port
6) Warranty: 24 Months from the day when you receive the goods

Comparison between LiFePO4 battery and Lead-Acid battery:
BatteryIngredients	LiFePO4 Battery	Lead-Acid
Safety & Environmental Concern	Safest; no explosion; no smoke; no fire under very bad working condition; most environmentally friendly; non-toxic; no rare metal, fire resistant, easily disposed of.	safety is acceptable; heavy pollution to water and soil; breaking ecological balance; threatening people' s health especially for Children; hard to dispose of; high re-use cost.
Life Cycle	Best, up to 1000 times under 80% DOD(theoretically 2000 times)	Very short life cycle, about 150 times under 100% DOD; maintenance needed very often.
Long term Cost	Most economical	Cost of whole lifetime is higher than  LiFePO4
Thermal Performance	Excellent – Can work normally under -20° C~70° C	The capacity decays quickly if the temperature is higher than 50° C
