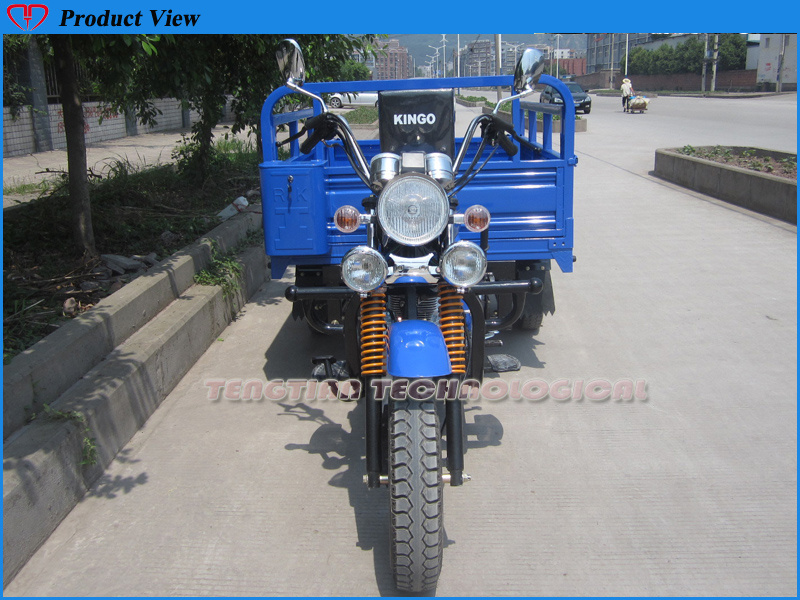

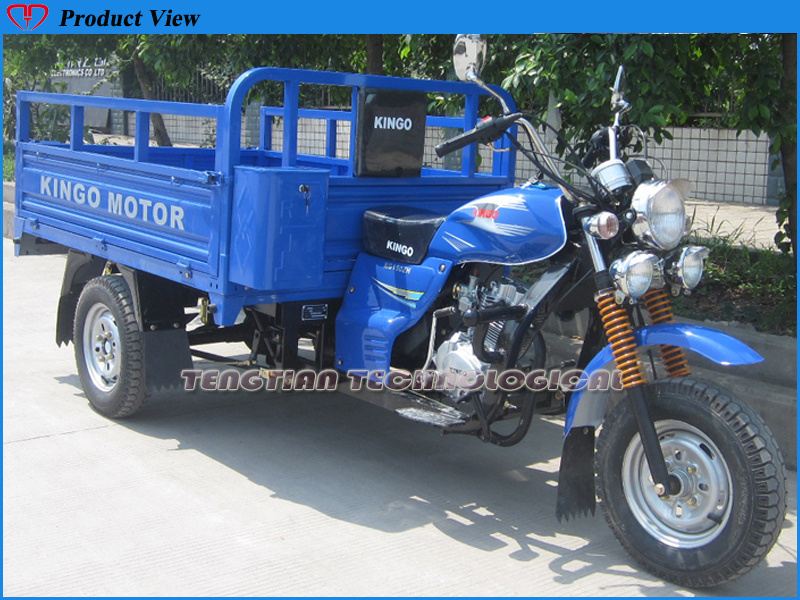

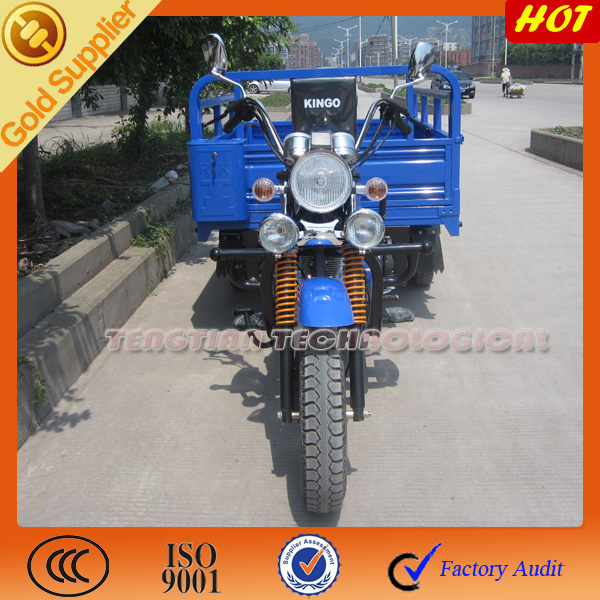

Open Cargo Three Wheeled Motorcycle

Open Cargo Three Wheeled Motorcycle
Price: US $ 1270-1290/Piece
Trade Terms: FOB
Min Order: 20/Piece
Pay Type: L/C,T/T

Specifications

Prod Model: 150cc
Markets: South America,Southeast Asia,Mid East
Color: Red, Green, Blue etc
Max Speed: 65km/H
Net Weight: 380kg
Distance From Floor: 155mm
Engine Brand: Loncin, Lifan, Zongshen
Type: Cargo Motorcycle
Displacement: 126-250CC
Engine Type: 4-Stroke
Fuel: Gas / Diesel
Certification: CQC
Condition: New

Product Description


                                Best new 200cc 3 wheel motorcycles for sale

Technical specifications


                                           Chongqing Tengtian Technological Develop Co., Ltd.
Product NameBest new 200cc 3 wheel motorcycles for sale
Product Technical Specifications(General Information)
Part I
Technical Design
ApplicationCargo&passengers Transport
Design Max Speed≥60 km/h
Loading Capacity1500-2000 kg
Unladen Kerb Weight420 kg
Dimension(L*W*H)3155x1250x1430 mm
ColorRed/Green/Yellow/Black/Other colors
Track1050 mm
Wheel Base2100 mm
Ground Clearance160 mm
Brake ModeFront&Back wheels, Drum
Transmission TypeShaft Drive
Power8.0 kw
Cool TypeWater Cooled
Min.Fuel Consumption354g kw.h
Fuel TypeGasoline
Fuel Tank Capacity12 L
Part II
Engine Details
Engine TypeSingle cylinder,4-stroke,camshaft downward
Bore Stroke63.5×49.5mm
Fuel TypeGasoline
Compression Ratio9.5:1
Rated Power&Rotating Speed8.0 kw /8000rpm
Max.Torgue/Rotating Speed11.0N.m /6500rpm
Lowest No-Load Speed Stability1500rpm
Displacement(cc)156ml
Ignition SystemCDI
Apply toMotor tricycle
StarterKick/Electric
Part III
Operation
Starting SystemElectric/Kick
Transmission4 Forward &1 Reserse Gears
Gearshift ControlManual-Foot
Clutch MethodManual-Hand
Brake Operate ModeManual-Hand or Foot
Part IV
Packaging
TransportBy Land/Sea/Other
Port Of LoadingChongqing/Shanghai/Other ports of china
PackageProtective Packaging /CKD,SKD
Loading Capacity (CKD)22 units in 20"GP,54Units in 40"HQ
Delivery Time (from loading port)20-25 Days after receiving advance payment
Please Note:
*All sizes are approximate,any other sizes are available according to customers' special requests.
*For more optional details, please contact Chongqing Tengtian Technological Develop Co., Ltd.
*Any details of the motor tricycle should subject to our final confirmation before ordering.



Brief Introduction


Economic and easy to use

Humanized configuration: Motorized tricycles replaced traditional labor force transportation, more convenient and faster, save your costs both on energy and time. Especially very powerful and useful when transporting large and heavy goods and driving roads with serious condition.
Low maintenance: With correct using, the robust and reliable body & power source of tricycles will keep health for a long time. Do not need to maintain frequently. Daily inspection and cleaning can be easy finished by yourselves in your garden or before your house door. All these require little maintenance fee.
Wide range of application: Allows transporting grain, bullamacow, fertilizer, water, silt, coal, metals, wood, fruit, aquatic product, passengers and more, as long as you can think and you need. With one tricycle in your house, it will be your good helper both on daily life and work. Therefore it is very effective and productive.
Ready to use: The operating system of cargo tricycle is very easy to handle, and much closer to common users. Its simplicity allows many operators to use without in-depth training.
Tricycles vary from size to color


Displayed here is a selection of some of the tricycles that we have produced in the past. This is a mere fraction of the production we have done in the past and it means to give a brief introduction to our range of capabilities and experience. If you require a tricycle you do not see here, please contact us as this is just an example of our product and we can do much more.
