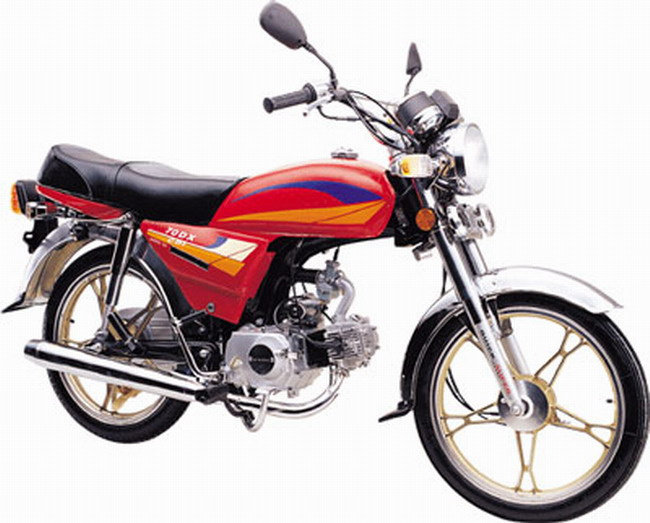

Home Shannan Jinying Motorcycle Co., Ltd. Off Road 70cc Motorcycle (JY70)
Specifications
| Prod Model: | JY70 |
|---|
Product Description
Dimension ((L*W*H)mm):1920*770*1080Wheel base(mm):1230
Min.Ground clearance(mm):140
Rim type:spoke / alloy
Dry weight(kg):95
Fr. Tyre size and air pressure:2.25-17/175KPa
Rr. tyre size and air pressure:2.50-17/200KPa
Fr. Brake: drumRr. brake: drum
Max.loading capacity(kg):150
Max. Speed (km/h):70
Economical fuel consumption (l/100km):1.8
Break Performance:≤7m/30km/h
Max. Fork advancing angel :18
Max. Voice (dB(A):80
Engine model:1P47FMD
Engine type:single-cylinder,air-cooled,four-stroke
Bore X Stroke (mm):47*41.4
Displacement (ml):72
Compression ratio:7.0:1
power (kw/r/min):3.6/7500
Max.torque (N.m/r/min):5.6/5000
starting mode:Electric Start/Kick Start
Ignition mode:CDI Electronic ignition
package way:Iron and Seven-layer carton
