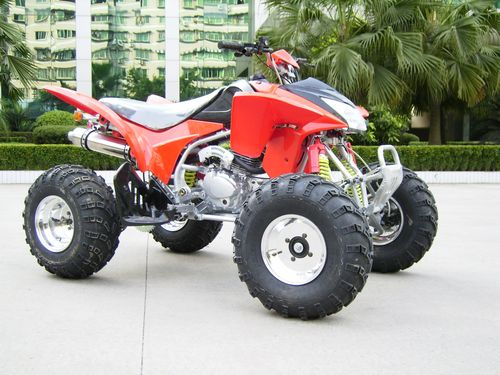

Newest Model 250cc ATV / Quad (ATV250S-4)

Specifications

Prod Model:	ATV250S-4

Product Description

1) Main parameter as well as function index
2) Length x width x height (mm): 1,680 x 960 x 880
3) Front wheel base (mm):870
4) Rear wheel base (mm):930
5) Engine type: single cylinder, 4 stroke, reverse inside
6) Start mode: electric
7) Power (kW/r/min): 11kW/6,500r/min
8) Max. torque (N.m/r/min):17+5%N.m/6,000??500r/min
9) Max. speed(km/h):>=90
10) Mini ground clearance (mm):175
11) Dry weight (kg):145
12) Transmission mode:chain
13) Break type (F/R):hydraulic brake
14) Max. climb degree:60
15) Tank capacity (L):1??0.1
16) Hanging: double arm-swing
17) Specification of tire:front-wheel drive:23 x 7-10
18) Rear wheel:22 x 10-10
19) Cylinder diameter x journey (mm):65.5 x 66.2
20) Displacement (ml):223
21) Shift gear:4 gear/1 reverse,neutral
22) Height of seats (mm):700
23) Mini turning radium (mm);2,000
24) Parking trig:mechanic lock
25) Ignition mode:CDI
26) Loading capacity (kg):200
27) Engine oil (L):1.0
28) Gear wheel oil (L):0.2
29) Person:1
30) Lubrication:press splash
31) Compression proportion:9.0: 1
32) Gas cylinder number:1
33) Parking dimensions (mm):1,680 x 960 x 880

Conveyance:
Qty/20'FCL:12units
Qty/40'FCL:28units
Qty/40'HQ;42units
