Specifications
Prod Model: |
JY150T-9G |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Color: |
Red,Yellow,White ,Black |
Engine: |
4 Stroke |
Certification: |
COC |
Folded: |
Unfolded |
Max Speed: |
85km |
Displacement: |
150cc |
Maximum Loading Capacity: |
150kg |
Fuel Tank Capacity: |
6.5L |
Product Description

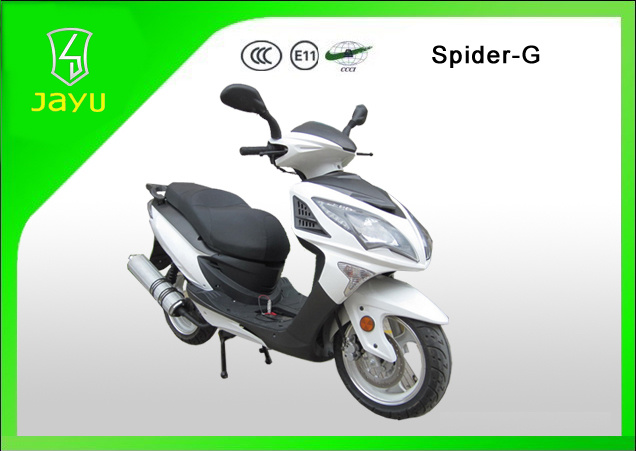

motor scooter
1.Big size scooter gives safety and comfort for high speed cruising
2.Maintenance-free battery
3.Dual eagle-eye style headlight
4.Diamond shape signal light
1,Selling points:
1,It can match multicolor and stickers
2,we can do 125C power, also do we can do 50CC and 150CC models.
3,Front and rear vacuum tire :durable,fasten, balanced ,and beautiful. the tire is wear-resisting and aiti-explosion.
4,Disc brake has high safety performance and has no noise
5,The motorcycle can install rear box and rear carrier
Scooter body parameter |
MODEL |
JY125T-9D/JY150T-9G (Spider-125/150) |
Dimensions (mm): |
1980 x 700 x 1160 |
Wheel base (mm): |
1385 |
Ground clearance (mm): |
115 |
Dry weight / Load capacity: (kg) |
115 / 150 |
Max.speed (km/h) : |
80 / 85 |
Economic fuel consuption (1/100km/L) : |
2.8 / 2.9 |
Exhaust system : |
Mute exhaust |
Fr brake / Rr brake : |
disc/drum |
Fr tyre / Rr tyre : |
130/60-13 |
Fuel tank capacity (L) : |
6.5 |
Battery |
12V 7AH / 12V 9AH |
Ignition |
CDI |
Front suspension : |
Spring shock |
Rear suspension : |
Spring shock absorber |
Scooter Engine parameter |
Engine mode: |
152QMI / 157QMJ |
Engine type |
1-cylinder,air-cooled, 4-stroke |
Displacement (cc) : |
124.6 / 149.6 |
Cylinder Diameter / Pinston Stroke |
52.4 x 57.8 ; 57.4 x 57.8 |
Transmission system : |
Belt CVT |
Compression ratio |
10.3:1 |
Start system : |
kick / electric |
Standard power(km/r/min): |
5.2/7500 ; 6.4/6500 |
Max. torque(n.m/r/min): |
7.3/6000 ; 8.3/7500 |
Packing information |
N.W / G.W (KG)/Packing model |
98 / 113; |
Packing model |
Full export carton package |
Packing size(mm) /20GP(CBU) |
1960 X 570 X 1200 / 24PCS |
Packing size(mm) /40HQ(SKD) |
1860 X 570 X 870 / 75PCS |
