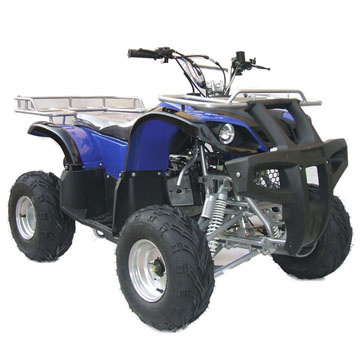

New Model 150cc GY6 ATV (SBP-ATV150C)
| Price: | US $ 550-590.00/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 1 |
Specifications
| Prod Model: | SBP-ATV150C |
|---|
Product Description
Model No: SBP-ATV150C1) Engine style: 150CC GY6, single cylinder, air-cooled, 4-stroke
2) Bore x stroke: 57.4 x 57.8 (mm x mm)
3) Lubrication: pressure / splash
4) Max. power: 7.0 / 7000+/-150 (Kw/r/min)
5) Max. torque: 8.8 / 5500+/-150 (N.m/r/min)
6) Ignition: C.D.I.
7) Starting type: electric
8) Oil consumption: ≤365g/kW
9) Clutch
10 )Transmission: CVT, can be made with reverse gear
11) Dimensions (L x W x H): 1,625 x 860 x 960mm
12) Tyre and rim: a) Front: 19 x 7-8 b) Rear: 18 x 9.50-8
13) Brake style: a) Front: drum b) Rear: disk
14) Absorber style:a) Front: independent hanging b) Rear: middle absorber
15) Oil tank capacity: 7.5L
16) Climbing ability: ≥25degree
17)Packing dimensions (L x W x H): 1,485 x 835 x 780mm
18)N.W.: 125kg G.W.: 145kg
19)Conveyance:Qty/20": 30 units Qty/40": 66 units.
