Specifications
Prod Model: |
HS-706 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Folded: |
Unfolded |
Fuel Tank Capacity: |
5-8L |
Maximum Loading Capacity: |
≥120kg |
Engine: |
4 Stroke |
Certification: |
EEC |
Max Speed: |
21-50km/h |
Displacement: |
600W (50CC), 1000W (125CC) |
Product Description

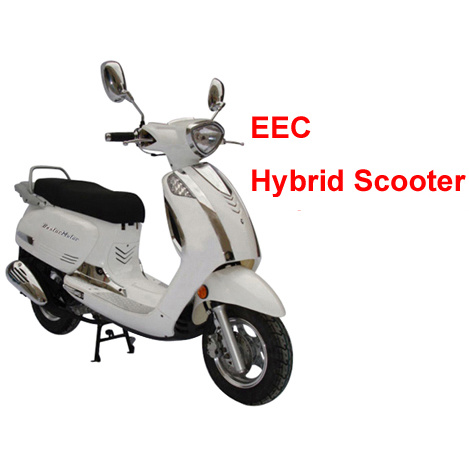

New Hybrid Scooter with EEC
Product Dimension (mm): 1775X670X1105
Wheelbase (mm): 1290
Net weight (kg): 99
Max speed (km/h): 45
Max load (kg): 150
Tyre size (Fr. /Rr. ): 3.50-10
Wheel rim (Fr. /Rr. ): Aluminum
Brake (Fr. /Rr. ): Disk / Drum
Bear brake operation: Hand
Compression Ratio: 10 more or less 0.1: 1 (50CC), 9.2 more or less 0.1: 1 (125CC)
Engine style: 50CC/125CC, 1-Cylinder, 4-Stroke, air-cooled
Bore x Stroke (mm): 39.0X41.5 (50CC), 52.4X57.8(125CC)
Max power (kw/rpm): 2.1/6500(50CC), 5.15/7500(125CC)
Fuel capacity (L): 5.5
Starting: Electric
Ignition: C. D. I
Motor type: DC brushless
Headlight: 12V / 35W
Brake light: LED 12V /2.2W
Taillight: LED 12V 0.4W
Rated power: 600W (50CC), 1000W (125CC)
Maximum speed: 35Km/h
Battery capacity: 48V / 24Ah
Battery type: Lithium
Max charging current: 3A
Input: 115/230V AC
Output: 60V DC/3A
Range per charge: 55Km
FCL quantity: 26PCS/20'FCL, 52PCS/40'FCL, 84PCS/40'HC
