Specifications
Prod Model: |
TC-020 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Model: |
Tc-020 |
Controller: |
Brushless Controller |
Lamp: |
LED |
Front Fork: |
Hydraulic Pressure |
Climbing Angle: |
25 Degrees |
Throttle: |
Twist Intelligent Speed Control |
Net Weight: |
110kgs |
Gross Weight: |
120kgs |
Product Size: |
155X70X106cm |
Carton Dimension: |
160X72X107cm |
Motor: |
Brushless |
Battery Type: |
Lead-acid Battery |
Frame Material: |
Steel |
Certification: |
ISO |
Wheel Hub: |
Lightweight Alloy Hubs |
Folded: |
Unfolded |
Charging Time: |
8-10h |
Part: |
Charger |
Running Distance: |
55km |
Brake: |
Drum Brake |
Max Speed: |
25km |
Voltage Of Battery: |
48V&60V |
Power: |
500W |
Maximum Loading Capacity: |
110kg |
Wheel Size: |
300-10 Tubless |
Product Description

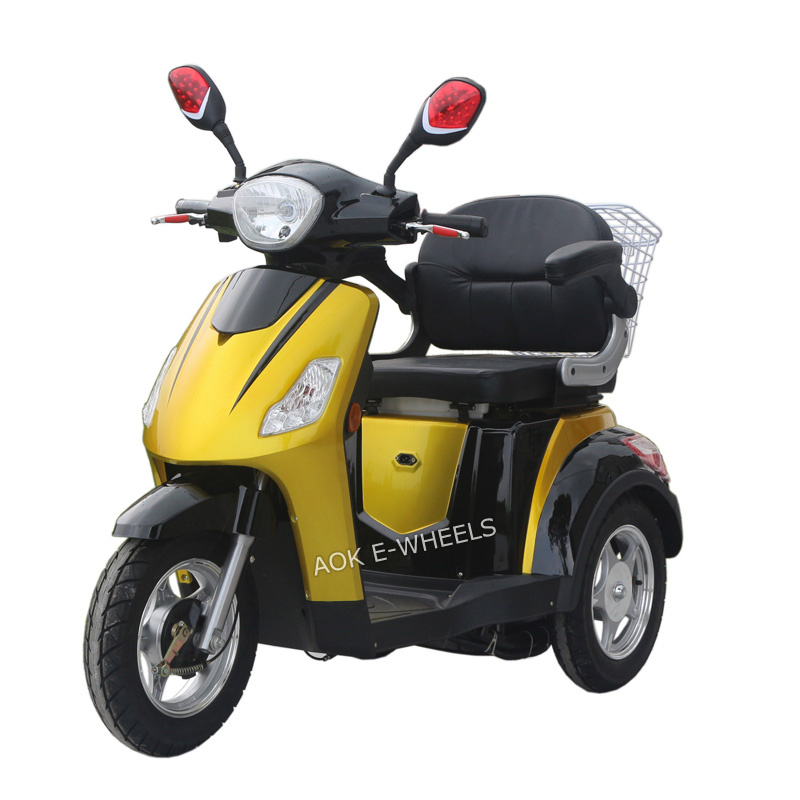

New Electric Moped,E-Scooter,Electric Scooter,Electric Mobility Scooter
Model No.:TC-020
Cerificate:CE/ISO
Motor:Different speed brushless motor 500W
Battery:48V 20AH/60V20AH sealed lead-acid battery
Controller:Brushless controller
Charger:110V60HZ/220V50HZ
Carton Size:160X72X107CM
Delivery Time:15 working days for samples, 20~25 days for bulk.
Color:Yellow,Blue,White,Red,Black etcs.
Specification
Specification: | Motor | Different speed brushless motor 500W |
Battery | 48V 20AH/60V20AH sealed lead-acid battery |
Dashboard | Common meter |
Controller | Brushless controller |
Charger | 110V60HZ/220V50HZ |
Charging time | 8~10 hours |
Lamp | LED |
Performance & Main components
Performance & Main components: | Max.speed | 25km/h |
Range | 55km(distance by riders weight,terrain,road sufurface etc.) |
Max load | 110kgs |
Tyres | 300-10 tubeless |
Front brake | Drum brake |
Front fork | Hydraulic pressure |
Rear brake | Drum brake |
Climbing angle | 25 degrees |
Throttle | Twist intelligent speed control |
With reverse gear , rear basket |
Different colors are available |
With 3 different kinds of max speed (1speed:9km/h,2speed:15km/h,3speed:25km/h) |
Packaging&Delivery
Packaging Details: | Unit packaging | Each in a carton box |
Net weight | 110kgs |
Gross weight | 120kgs |
Export carton dimension | 160X72X107CM |
Delivery Details: | 15 working days for samples, 20~25 days for bulk. |
Container
1x20'footer FCL quantity : 20 pcs
1x40'footer FCL quantity : 44pcs
1X40'HQ: 44pcs
