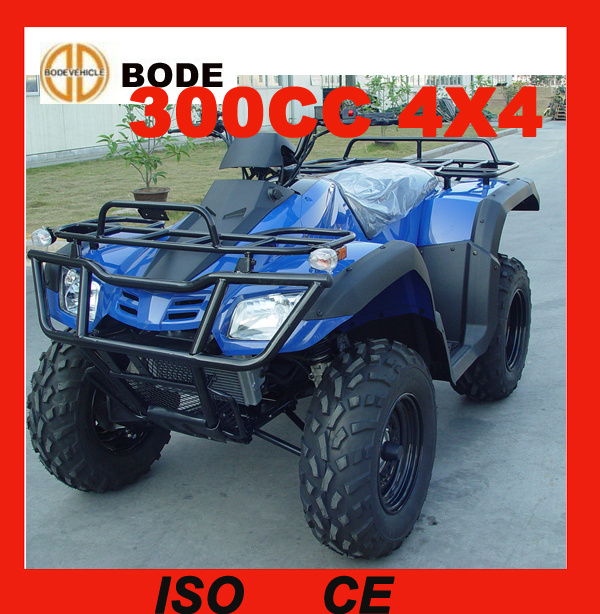

New EEC 300cc 4X4 ATV (MC-371)
| Price: | US $ 2350-2550/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 2/Piece |
| Pay Type: | L/C,T/T,Western Union |
Specifications
| Prod Model: | MC-371 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine: | 300cc Water Cooled,CVT |
| Color: | Red/Blue/White/Black/ |
| Warranty: | 6 Month |
| Ignition Type: | Cdi |
| Vehicle Dimensions: | 2016×1180×1237mm |
| Front Tire Spec: | 25×8-12 |
| Rear Tires Spec: | 25×8-12 |
| Fuel Tank Capacity: | 12L |
| Packing Size: | 2280×1290×870mm |
| Battery Spec: | 12V/14ah |
| Transmission System: | Chain Drive |
| Transmission Type: | Automatic |
| Certification: | EEC |
| Engine Type: | 4 Stroke |
| Fuel: | Gas / Diesel |
| Displacement: | 300CC |
| Structure: | Without Door |
| Maximum Speed: | >75 km/h |
| Brake Type: | Disc Brake |
| Condition: | New |
| Brand: | Bode |
| Power: | 300cc |
Product Description
New EEC 300CC 4X4 ATV (MC-371)ENGINE TYPE 4 Stroke, Water Cooled
MAX. POWER(KW/rpm) 14KW/7000rpm
MAX. TORQUE(NM/rpm) 20N. M/5500rpm
MAX. SPEED 65KM/h
CYLINDER NO. Single Cylinder
BORE STROKE 72.5mm × 66.8mm
DISPLACEMENT 276cm
COMPRESSION RATIO 10.3: 1
CARBURETOR CVK052
LUBRICATE Combined force-feed and splash lubrication
AIR FILTER TYPE Dry Air Filter Net
SPARK PLUG DR8EA
STARTING Electric Start
IGNITION C. D. I
STARTING PROCEDURE Start Electric Lock, Hold brake, Press Start Switch
GEARSHIFT Manual
SHIFT SWITCH Yellow switch between 2W and 4W
TRANSMISSION Automatic CVT with H/L/N/R
FINAL DRIVE SYSTEM Shaft/4W
BRAKE FRONT Hydraulic disc brake
BRAKE REAR Hydraulic disc brake
PARKING DEVICE Mechanical brake lock on rear disc
BRAKE DISTANCE 7m/30km/h
FRONT SUSPENSION Mcpherson front suspension
REAR SUSPENSION Swing Arm
SHOCK ABSORBER(F) Double
SHOCK ABSORBER(R) Single
BATTERY 12V/14AH
ENGINE OIL 1.5L
TRANSMISSION OIL 0.8L
REAR OIL 0.3L
FUEL 90# unleaded gasoline
FUEL CAPACITY 12.5L
TURNING RADIUS 3280mm
MAX. LOAD(kgs/lbs) 156kg
FRONT TIRE 25× 8-12
REAR TIRE 25× 8-12
WHEEL MATERIAL Aluminium alloy
OVERALL 2016× 1180× 1237mm
CARTONE SIZE (L/M/H) 2280× 1290× 870mm
PACKAGE40HQ`(SET) 27pcs
WHEELBASE(mm) 1271mm
SEAT HEIGHT(mm) 895mm
GROUND CLEARANCE 183mm
NET WEIGHT(kgs/lbs) 275kg
Optional Accessories winch
COLOR CODE Red, Black, Orange, Blue, Green, White Maple Leaf Camo,
Red Maple Leaf Camo, Yellow Maple Leaf Camo, Green Black Camo
Atv and go kart HS code: 8703101100
